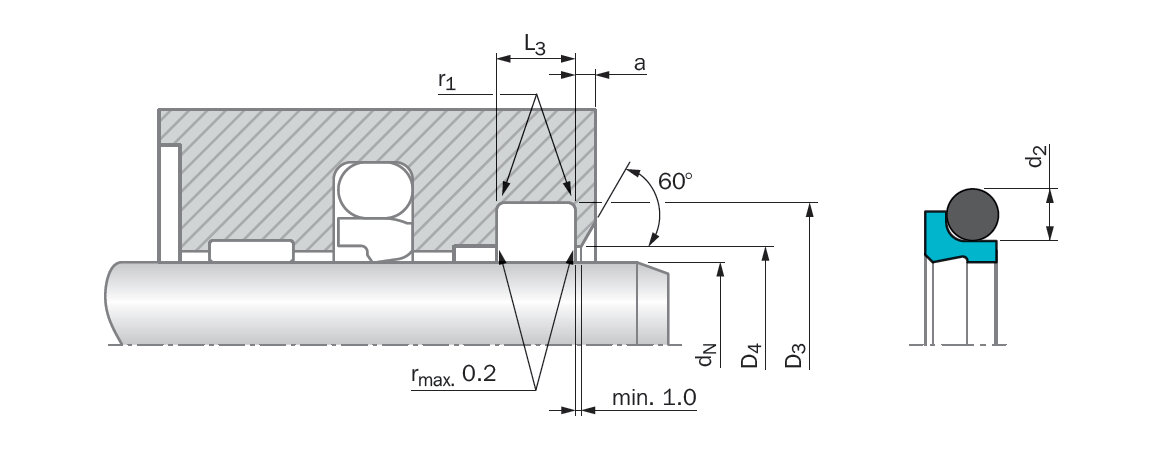

Turcon® Excluder® 2 is a compact, double-acting O‑Ring‑energized PTFE scraper engineered for hydraulic and pneumatic cylinders used in moderate to heavy-duty and helix-motion applications. The Excluder® 2 optimizes seal protection in compact hydraulic systems by combining efficient debris scraping and lubricant retention in a single, low-profile design, extending service life and reducing maintenance needs in demanding environments. The O-Ring is not included with this item.
Scrape/ Excluder®Turcon®:
Groove Diameter Outside42.8 mm
Ring Width4.5 mm
Signature StandardWE3100360-M12
Quality (10th Digit)-
TSS Article Number (3 to 9)3100360
Type of Article0
Root Ring Inside Diameter35.5 mm
Root Groove Inside Diameter36 mm
Groove Diameter Inside36 mm
Root Groove Outside Diameter42.8 mm
Root Groove Thickness3.4 mm
Root Groove Width5 mm
Article GroupWE
Root Ring Length0 mm
Legacy ID from KOM2WE3100360-M12
Root Ring Outside Diameter41.4 mm
Root Ring Thickness2.95 mm
Ring Thickness2.95 mm
Root Ring Width4.5 mm
Groove Thickness3.4 mm
Groove Width5 mm
Ring Length0 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance Max16 mm
Seal Tube ID Tolerance Min-16 mm
Seal Tube OD Tolerance From42.7 mm
Seal Tube ID Tolerance Max-1.3 mm
Seal Tube OD Tolerance Min1.3 mm
Ring Diameter Outside41.4 mm
Seal Tube OD Tolerance To57.4 mm
Seal Tube ID Tolerance To34.2 mm
Seal Tube ID Tolerance From19.5 mm
Ring Diameter Inside35.5 mm
Class Dependencies200000043602
Material Number200000043602
Compound Type110
Compound codeM12
Material Information for the product(s) on this page
M12
Gravity Unit:
g/cm³
Specific Gravity:
2.31
Color:
Dark Grey
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
34
Material Type:
PTFE
Material:
M12
Gravity Tolerance:
+/-0.03
Material Code Class:
Thermoplastic
