Variseal® is available in a range of geometries and designs that allow the optimum profile to be selected for each application. They can be produced from a wide range of Turcon® & Zurcon® materials, our proprietary PTFE-based compounds. These are specially formulated for sealing elements and offer superior characteristics specifically matched to the demands of our customers.

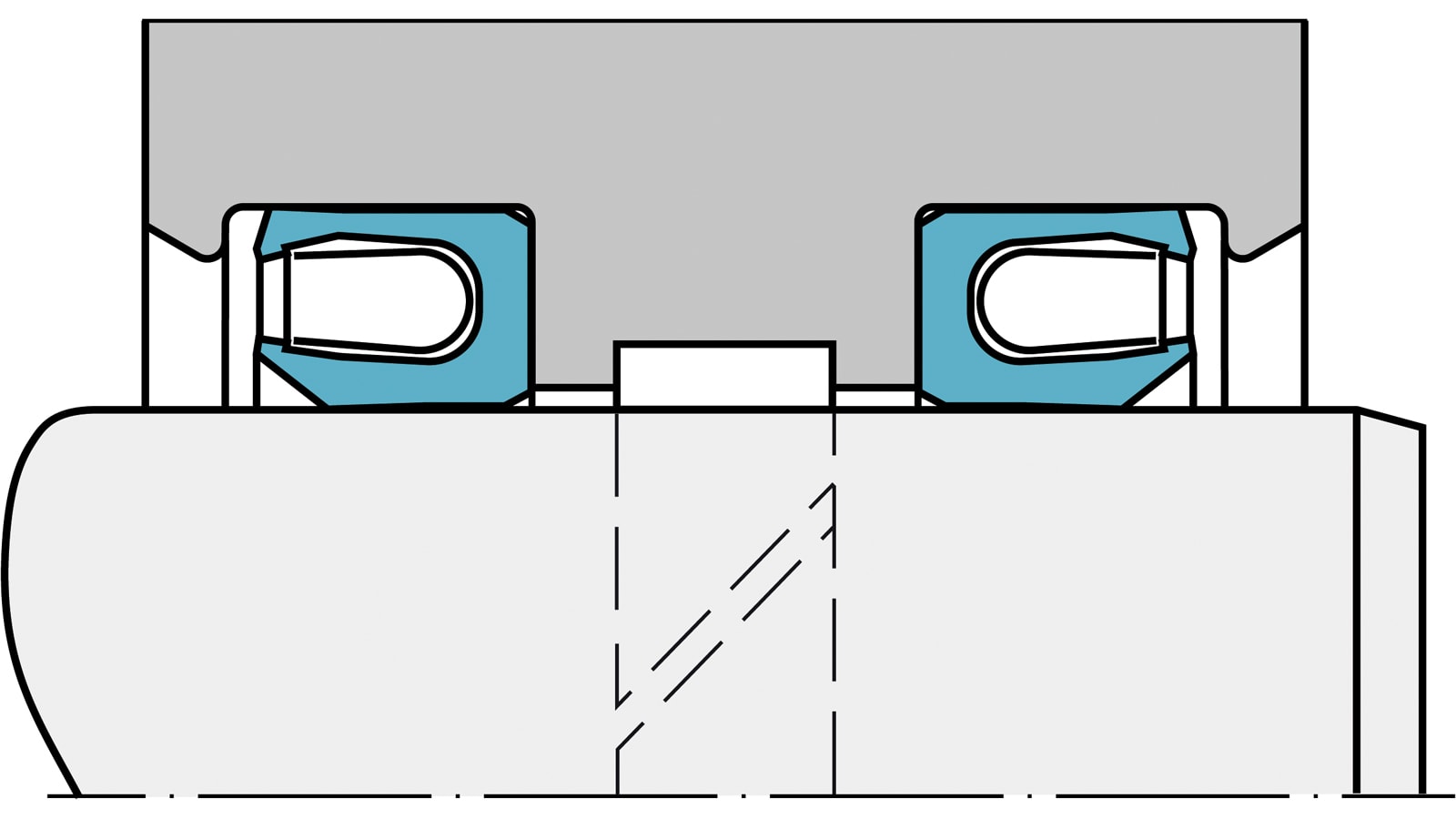

Rod/Variseal®:
Groove Diameter Outside7.9 mm
Signature StandardRVM300050-Z80S
Quality (10th Digit)-
Groove Diameter Inside5 mm
TSS Article Number (3 to 9)M300050
Type of Article0
Root Groove Inside Diameter5 mm
Root Groove Outside Diameter7.9 mm
Root Groove Thickness2.4 mm
Article GroupRV
Groove Thickness1.45 mm
Groove Width2.4 mm
Compound codeZ80S
Material Information for the product(s) on this page
Z80
Maximum Temperature:
80
Gravity Tolerance:
+/-0.01
Material Type:
UHMW PE
Color:
White to Offwhite
Material Code Class:
Thermoplastic
Gravity Unit:
g/cm³
Minimum Temperature:
-200
Ball Hardness:
29
Specific Gravity:
0.93
Material:
Z80
