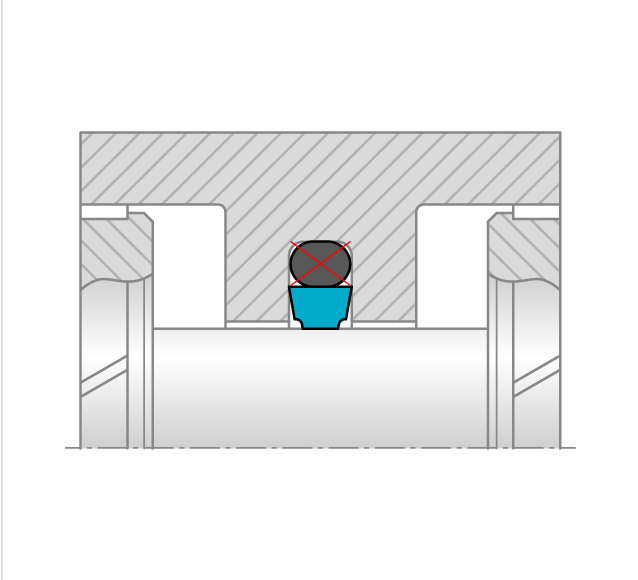

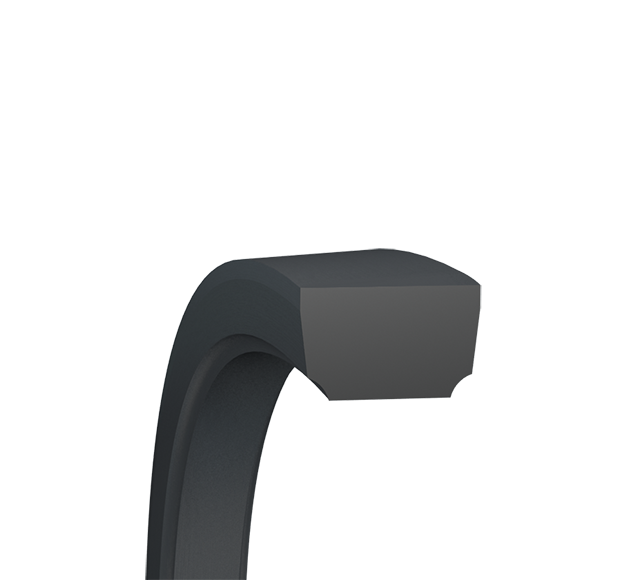

The Glyd Ring® T's benefits are provided by the innovative functional principle of the trapezoidal profile cross section. The sides of the seal profile taper towards the seal surface. The profile can thus retain the robust and compact form typical of rod seals without losing any of the flexibility required to achieve a pressure-related maximum compression. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Rod/GlydRing®T/ Turcon®:

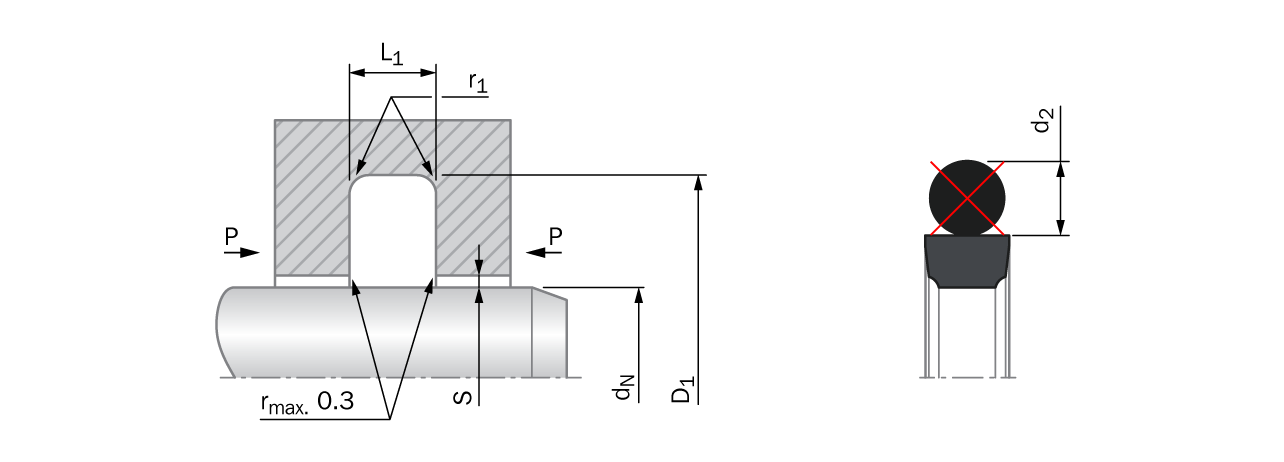

Groove Diameter Outside42.7 mm
Ring Width2.65 mm
Signature StandardRT0200320-T46
Quality (10th Digit)-
TSS Article Number (3 to 9)200320
Type of Article0
Groove Diameter Inside32 mm
Root Ring Inside Diameter31.25 mm
Root Groove Inside Diameter32 mm
Root Groove Outside Diameter42.7 mm
Root Groove Thickness4.2 mm
Root Groove Width5.35 mm
Root Ring Length0 mm
Article GroupRT
Legacy ID from KOM2RT0200320-T46
Root Ring Outside Diameter36.55 mm
Root Ring Thickness3.95 mm
Ring Thickness3.95 mm
Groove Thickness4.2 mm
Groove Width5.35 mm
Ring Length0 mm
Root Ring Width2.65 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance Max16 mm
Seal Tube ID Tolerance Min-16 mm
Seal Tube OD Tolerance From37.85 mm
Seal Tube ID Tolerance Max-1.3 mm
Seal Tube OD Tolerance Min1.3 mm
Ring Diameter Outside36.55 mm
Seal Tube OD Tolerance To52.55 mm
Seal Tube ID Tolerance To29.95 mm
Seal Tube ID Tolerance From15.25 mm
Ring Diameter Inside31.25 mm
Class Dependencies200000043550
Material Number200000043550
Compound Type110
Compound codeT46
Material Information for the product(s) on this page
T46
Color:
Greyish to Dark Brown
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Gravity Tolerance:
+/-0.04
Material:
T46
Material Code Class:
Thermoplastic
Specific Gravity:
3.07
Material Type:
PTFE
Gravity Unit:
g/cm³
