A double-acting four lip seal for static and dynamic applications. Available in a wide range of elastomer compounds. Provides higher seal efficiency and lower friction than conventional O-Rings.

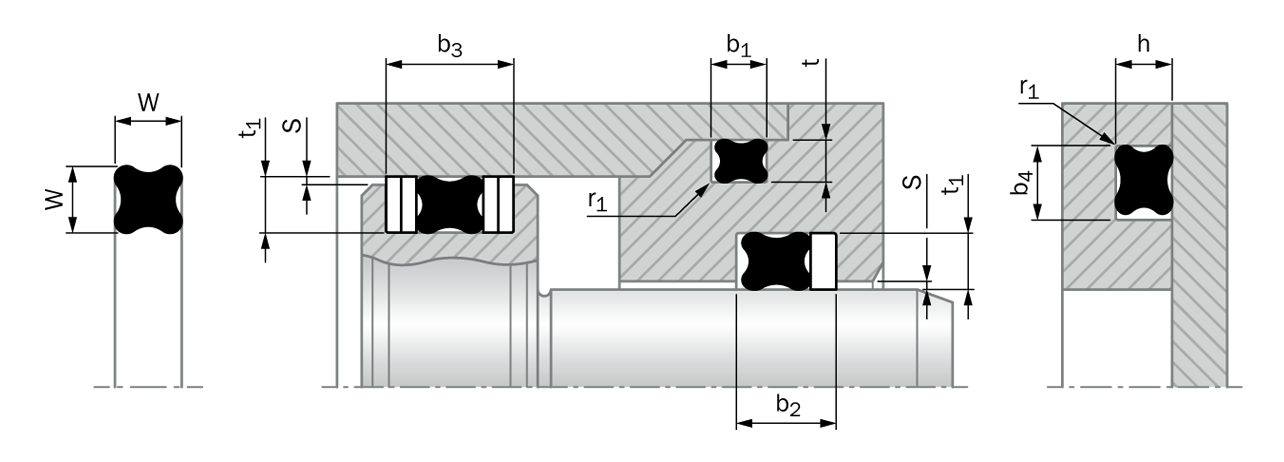

Quad-Ring®-standard:
Ring Width2.62 mm
Ring Diameter Inside18.72 mm
Signature StandardQRAR04116-N7004
Quality (10th Digit)-
TSS Article Number (3 to 9)AR04116
Type of Article0
Root Ring Inside Diameter18.72 mm
Article GroupQR
Root Ring Width2.62 mm
Compound codeN7004
Material Information for the product(s) on this page
N7004
Material Type:
NBR
Minimum Temperature:
-35
Hardness Tolerance:
+/- 5
Shore A Hardness:
70+/- 5
Hardness unit:
Shore A
Maximum Temperature:
100
Minimum Hardness:
70
Material:
N7004
Gravity Tolerance:
+/-0.02
Specific Gravity:
1.26
Color:
Black
Material Code Class:
Elastomer
Gravity Unit:
g/cm³
Maximum Hardness:
70
