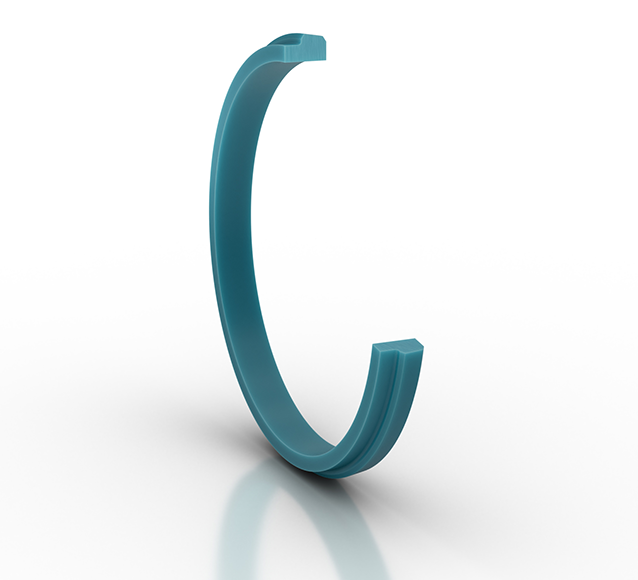

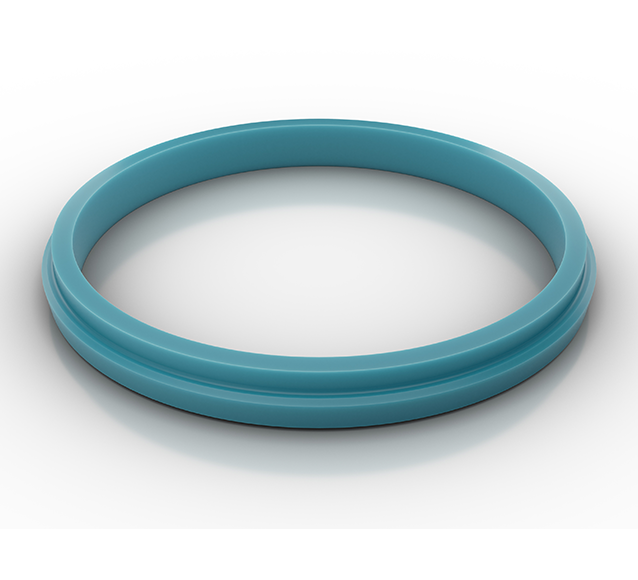

The Stepseal® K, comes closest in satisfying the ideal demands of a dynamic seal. That is, no leakage under all dynamic conditions and completely leaktight when the system is static. In use for several decades, this seal remains a technically outstanding design. The single-acting sealing element is made of high-grade PTFE materials with superior sliding and wear resistance properties. A full range of sizes are offered to suit all MIL-G-5514F and Trelleborg Sealing Solutions standards using an O-Ring as the energizing element. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/Stepseal®/Turcon®:
Groove Diameter Outside110 mm
Ring Width3.93 mm
Signature StandardPS1601100-T46
TSS Article Number (3 to 9)1601100
Quality (10th Digit)-
Type of Article0

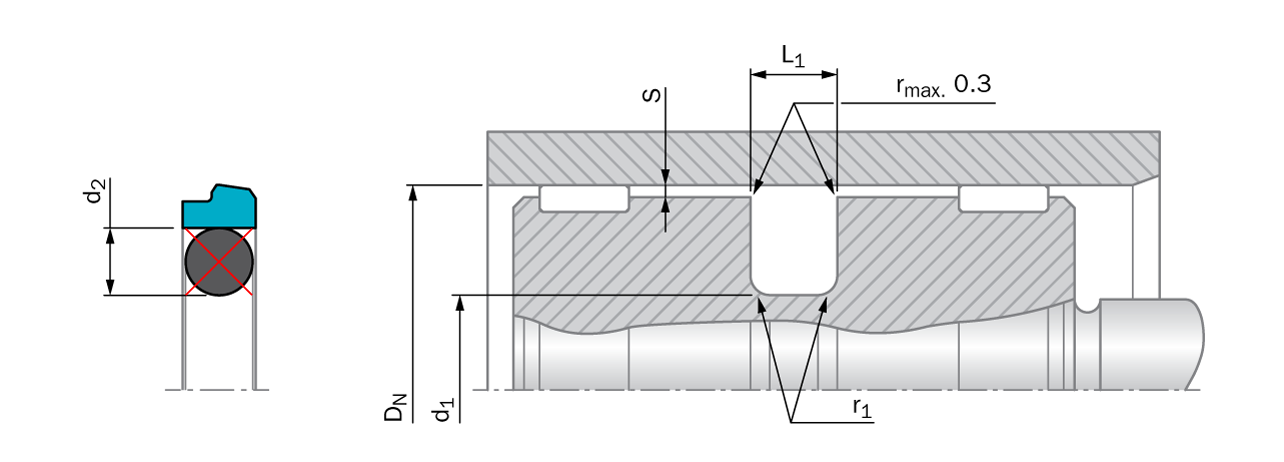

Root Ring Inside Diameter105.5 mm
Root Groove Inside Diameter99.3 mm
Root Groove Outside Diameter110 mm
Root Groove Thickness5.35 mm
Root Groove Width4.2 mm
Groove Diameter Inside99.3 mm
Article GroupPS
Root Ring Length0 mm
Legacy ID from KOM2PS1601100-T46
Root Ring Outside Diameter110.6 mm
Root Ring Thickness2.55 mm
Root Ring Width3.93 mm
Ring Thickness2.55 mm
Groove Thickness5.35 mm
Groove Width4.2 mm
Ring Length0 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube OD Tolerance From112.6 mm
Seal Tube ID Tolerance Max-2 mm
Seal Tube OD Tolerance Min2 mm
Ring Diameter Outside110.6 mm
Seal Tube OD Tolerance To160.6 mm
Seal Tube ID Tolerance To103.5 mm
Seal Tube ID Tolerance From55.5 mm
Ring Diameter Inside105.5 mm
Class Dependencies200000002043
Material Number200000002043
Compound Type110
Compound codeT46
Material Information for the product(s) on this page
T46
Color:
Greyish to Dark Brown
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Gravity Tolerance:
+/-0.04
Material:
T46
Material Code Class:
Thermoplastic
Specific Gravity:
3.07
Material Type:
PTFE
Gravity Unit:
g/cm³
