WNV is a double acting scraper in material Zurcon® polyurethane Z 201. The dynamic scraping lip is specially designed with an additional inwards sealing edge to keep the residual oil film in the system. If the volume of this oil film can not be backpumped by the main rod seal (e.g. u.cup) a pressure built up between u-cup and scraper will be prevented by releasing this pressure by liftening of the scraper lip. The static sealing lip and edge respectively ensure against the intrusion of dirt and fluids (e.g. water) over the outer diameter of the scraper.The support on the reverse side of the scraper prevents it from twisting in the groove.
Scraper/N:
Groove Diameter Outside24 mm
Signature StandardWNV000160-Z201
Quality (10th Digit)-
TSS Article Number (3 to 9)V000160
Type of Article0

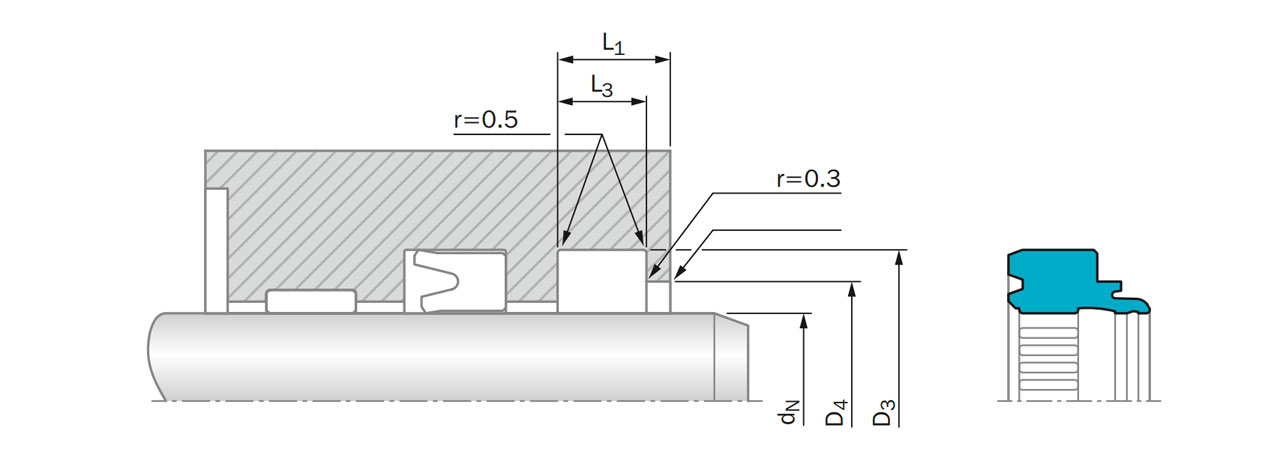

Root Groove Inside Diameter16 mm
Root Groove Outside Diameter24 mm
Root Groove Width5 mm
Groove Diameter Inside16 mm
Article GroupWN
Groove Width5 mm
Compound codeZ201
Material Information for the product(s) on this page
Z201
Colour:
Turquoise
Basic Material:
PUR
Hardness:
92 (Shore A)
Commercial Description:
A proprietary polyurethane material specially developed by Trelleborg Sealing Solutions for the manufacture of sealing elements. It offers high wear resistance, low compression set, a wide operating temperature range, and almost universal media compatibility. This material is most often used in linear and static applications requiring high wear resistance and good sealability.
