WE5201150-T46N

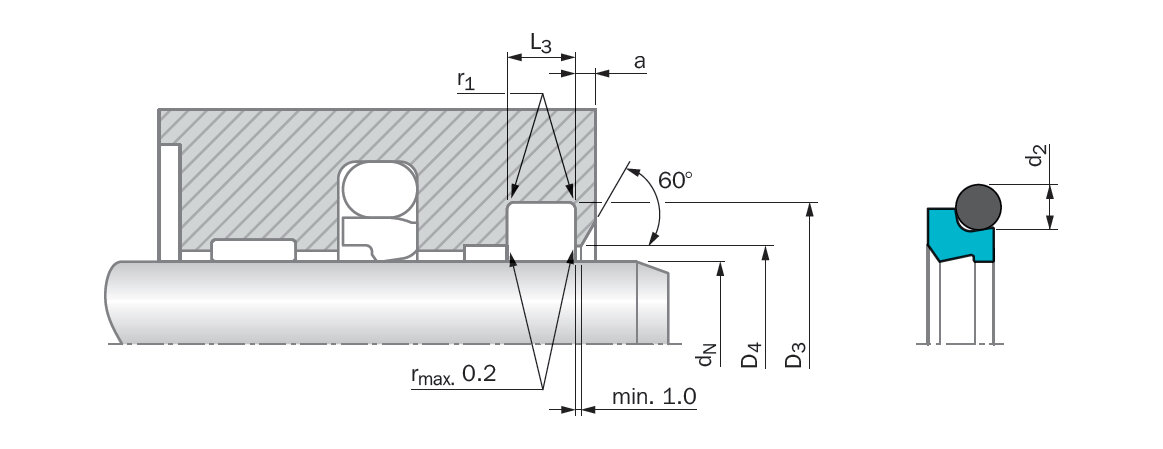

The scraper is installed with an O-Ring as elastic energizing element in one groove. The scraper function is performed by the Excluder®5 PTFE element. The O-Ring maintains the pressure of the scraper lips against the sliding surface and can compensate deflections of the piston rod. Available in Turcon® or Zurcon® materials.

Scrape/ Excluder®Turcon®:

Groove Diameter Outside127.2 mm

Signature StandardWE5201150-T46N

Quality (10th Digit)-

TSS Article Number (3 to 9)5201150

Type of Article0

Root Groove Inside Diameter115 mm

Groove Diameter Inside115 mm

Root Groove Outside Diameter127.2 mm

Root Groove Width8.1 mm

Article GroupWE

Groove Width8.1 mm

Compound codeT46N

Instruction (PDF) 1 Instruction (PDF) 2 Instruction (PDF) 3 Instruction (PDF) 4 Instruction (PDF) 5

Material Information for the product(s) on this page

T46N

Commercial Description:

Turcon® T46 is used as a primary sealing material along with an NBR (N7) elastomer. Turcon® T46 is a blend of PTFE, bronze, and a proprietary Turcon® filler and is backed by years of time-tested performance and offers a balance of performance and cost. This material has a high extrusion resistance and has very good wear properties. An NBR elastomer is used to provide good, general sealing capabilities.
