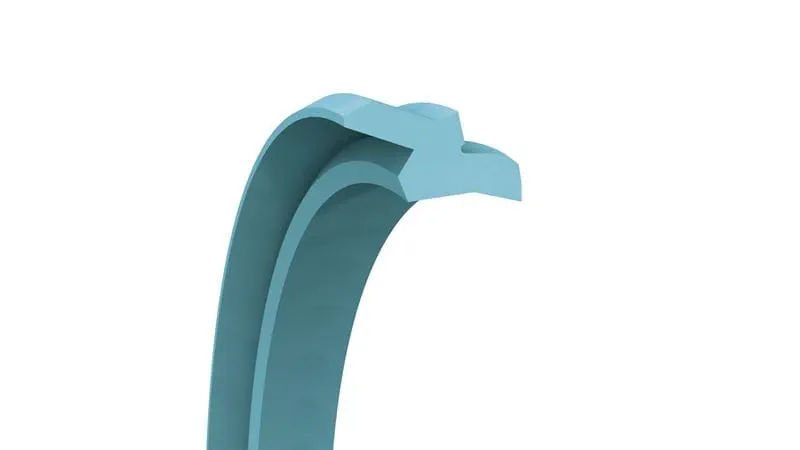

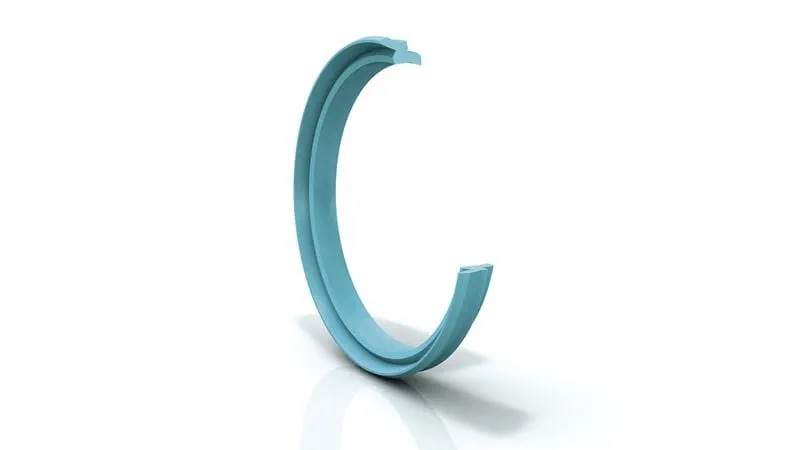

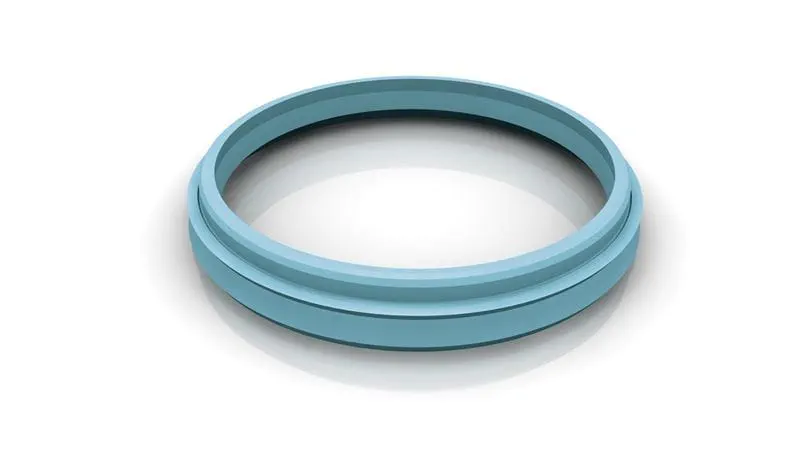

A double-acting Trelleborg scraper with a sealing and scraping lip in injection molded polyurethane.

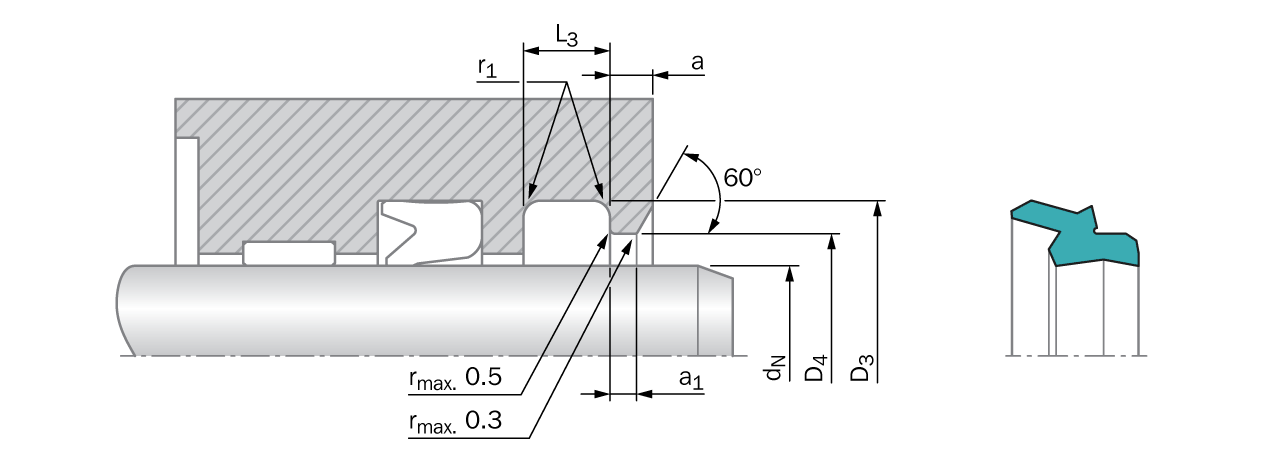

Installation Dimensions:
Rod Diameter, dN f8/h9200 mm
Groove Diameter, D3 H9216 mm
Groove Width, L3 +0.29.5 mm
Bore Diameter, D4 H9208 mm
Step Width, a min.5 mm
Step Width, a1 min.3 mm
Radius, r1 max.2 mm
Material Properties:
Material TypePUR
Seal Capabilities:
Min. Temperature-35 °C
Max. Temperature100 °C
Speed max.1 m/s
Pressure max.5 MPa
Material Information for the product(s) on this page
Z201
Colour:
Turquoise
Basic Material:
PUR
Hardness:
92 (Shore A)
Commercial Description:
A proprietary polyurethane material specially developed by Trelleborg Sealing Solutions for the manufacture of sealing elements. It offers high wear resistance, low compression set, a wide operating temperature range, and almost universal media compatibility. This material is most often used in linear and static applications requiring high wear resistance and good sealability.
