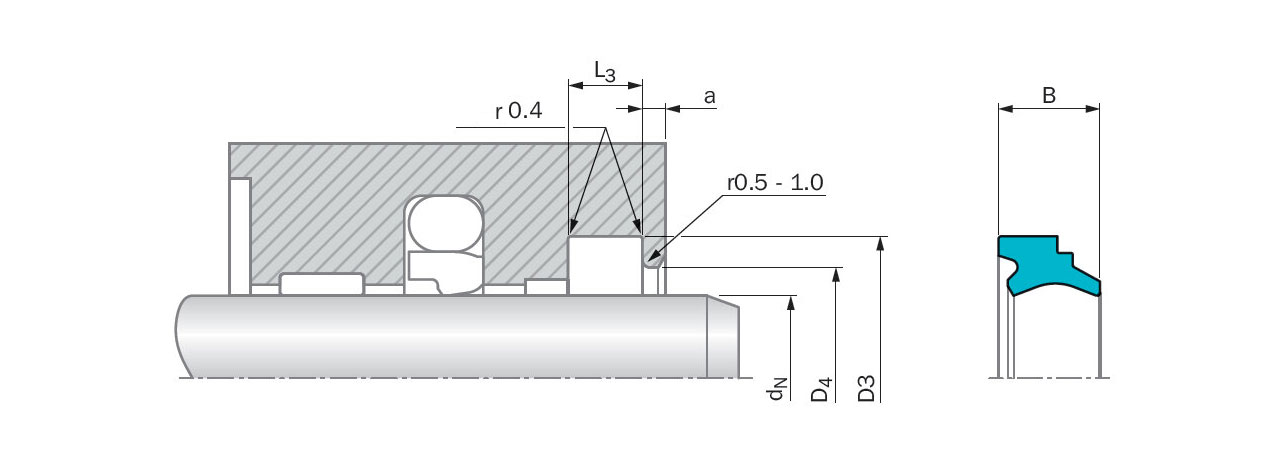

A double-acting scraper with both a sealing and a scraping lip in NBR. For applications in conjunction with seals that give back pumping performance, such as Turcon® Stepseal® 2K and Zurcon® Rimseal.
Scraper/Double DA:
Groove Diameter Outside40 mm
Signature StandardWD1700320-N968T
Quality (10th Digit)-
TSS Article Number (3 to 9)1700320
Type of Article0
Groove Diameter Inside32 mm
Root Groove Inside Diameter32 mm
Root Groove Outside Diameter40 mm
Root Groove Thickness6 mm
Article GroupWD
Groove Thickness4 mm
Groove Width6 mm
Compound codeN968T
Material Information for the product(s) on this page
N968T
Colour:
Black
Basic Material:
NBR
Hardness:
90 (Shore A)
Commercial Description:
A 90 durometer, NBR elastomer. The properties of the nitrile rubber depend mainly on the ACN content which ranges between 18 % and 50 %. In general it has good mechanical properties with an operating temperature range of between -30 °C and +100 °C (for a short period of time up to +120 °C). NBR is mostly used with mineral based oils and greases and is a good choice for standard applications.
