Type E

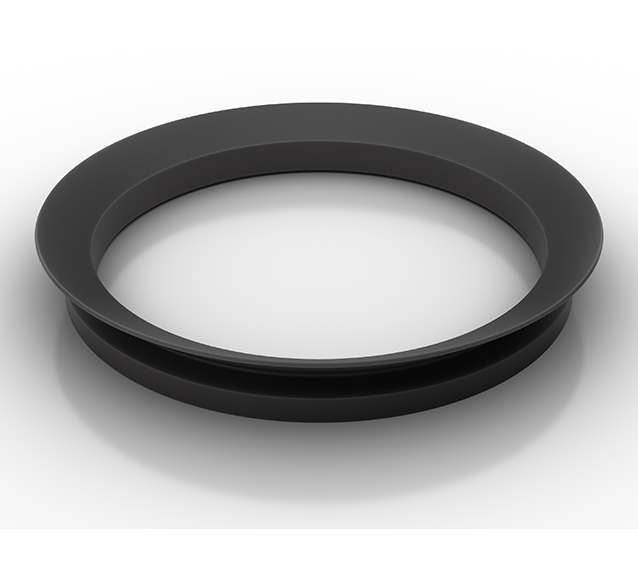

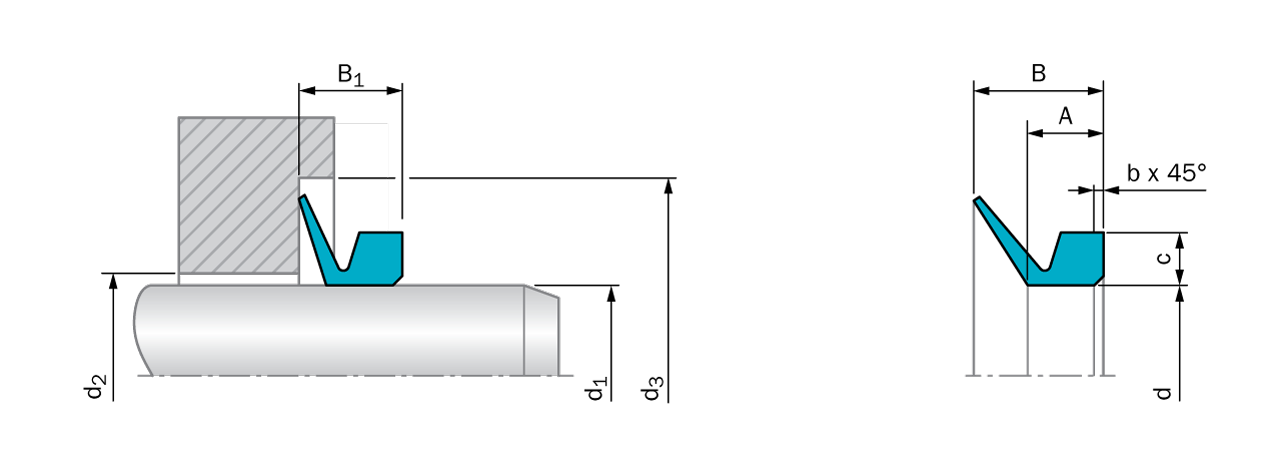

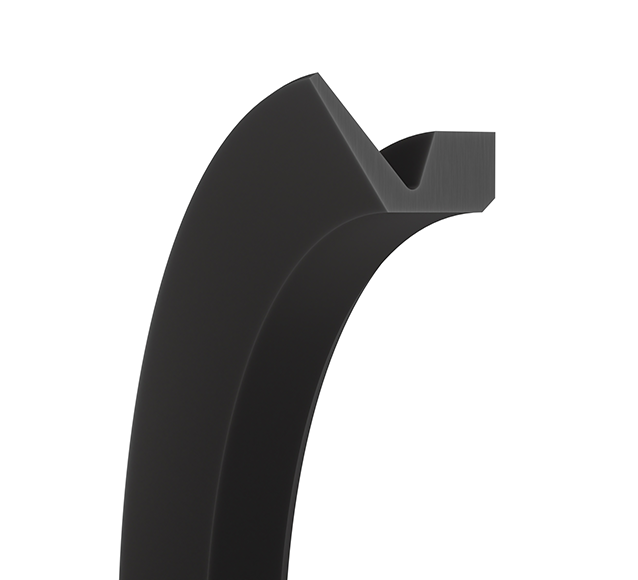

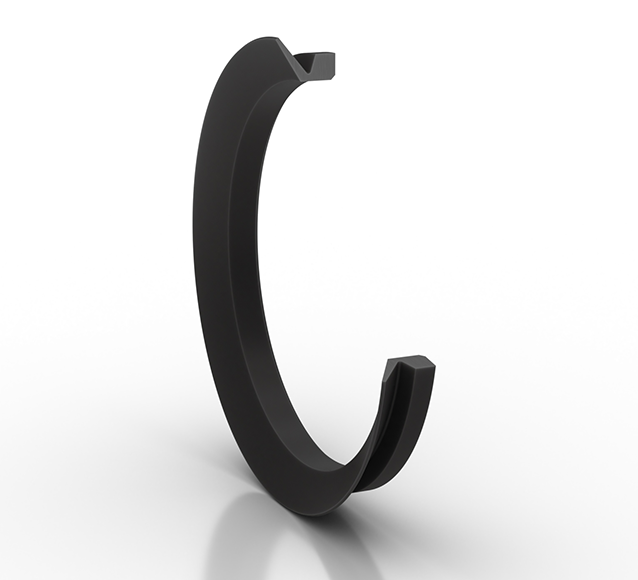

Rotary/V-Ring:
Ring Width65 mm
Ring Diameter Outside916 mm
Ring Diameter Inside786 mm
Signature StandardTWVEV8200-N6T50
Quality (10th Digit)-
TSS Article Number (3 to 9)VEV8200
Type of Article0
Root Ring Inside Diameter786 mm
Article GroupTW
Root Ring Outside Diameter916 mm
Root Ring Thickness30 mm
Root Ring Width65 mm
Ring Thickness30 mm
Compound codeN6T50
Material Information for the product(s) on this page
N6T50
Hardness:
60 (Shore A)
Basic Material:
NBR
Colour:
Black
Commercial Description:
The properties of the nitrile rubber depend mainly on the ACN content which ranges between 18 % and 50 %. In general it has good mechanical properties with an operating temperature range of between -30 °C and +100 °C (for a short period of time up to +120 °C). NBR is mostly used with mineral based oils and greases and is a good choice for standard applications.
