RU9000160-Z20

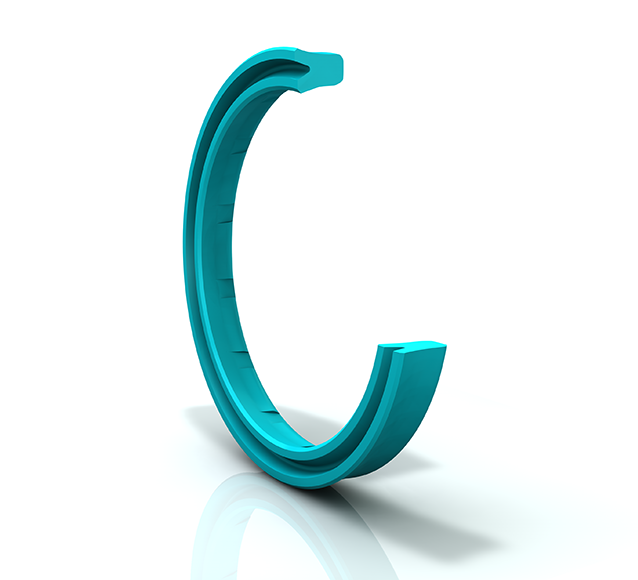

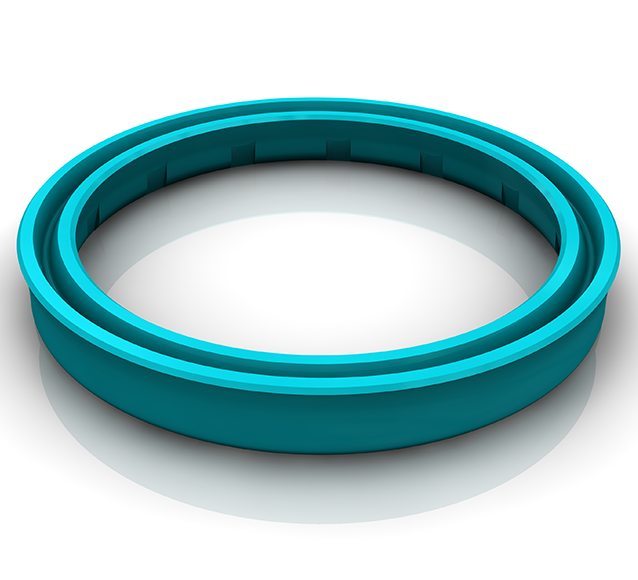

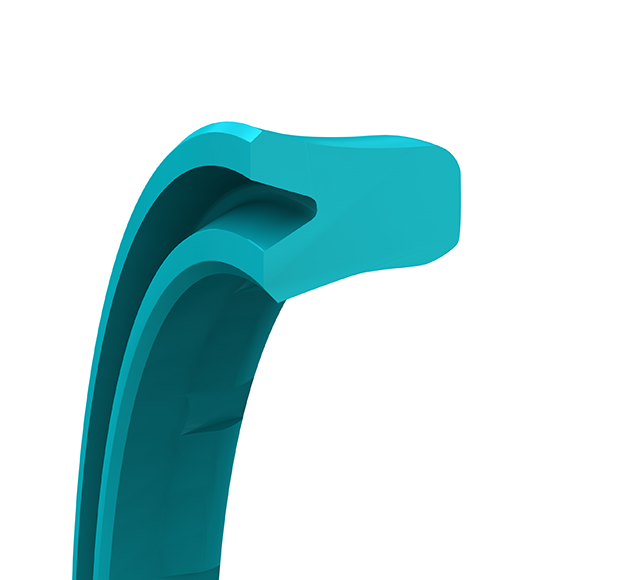

Rod seals are particularly exposed to pressure and friction and a long service life is a specific requirement of piston rods. Zurcon® U-Cup RU9 can offer this with its outstanding wear and extrusion resistance. It is also compatible with virtually all media, has a wide operating temperature range, and gives low friction. It has compact installation dimensions, is easy to assemble and can be used as a stand alone element with limitation to 40 MPa or in a tandem system with pressure up to 50 MPa.

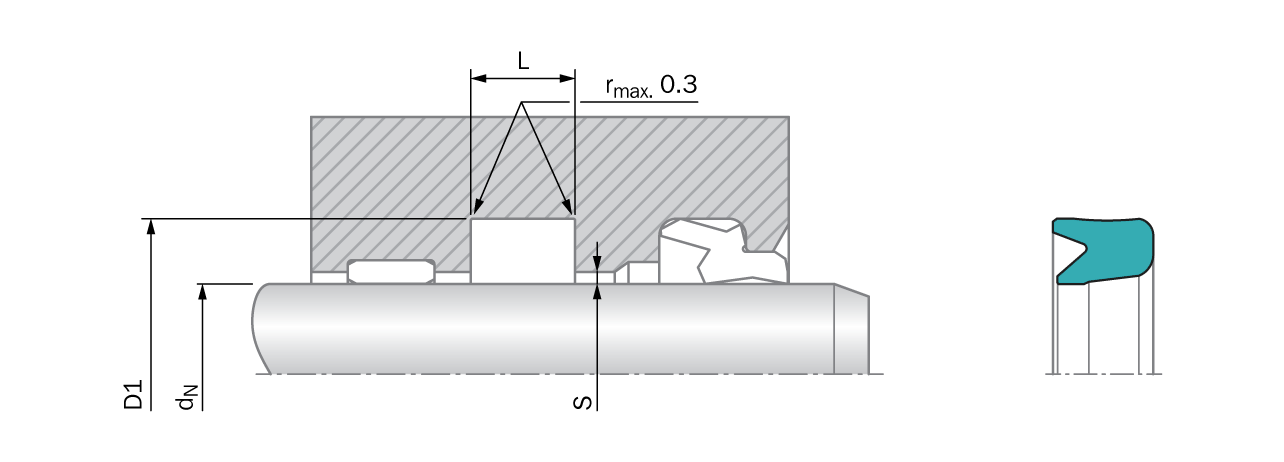

Rod/U-Cup:

Groove Diameter Outside24 mm

Signature StandardRU9000160-Z20

Quality (10th Digit)-

TSS Article Number (3 to 9)9000160

Type of Article0

Root Groove Inside Diameter16 mm

Root Groove Outside Diameter24 mm

Root Groove Thickness6.3 mm

Groove Diameter Inside16 mm

Article GroupRU

Groove Thickness0 mm

Groove Width6.3 mm

Compound codeZ20

Material Information for the product(s) on this page

Z20

Material data sheet

Hardness:

93 (Shore A)

Commercial Description:

Zurcon® Z20, 93ShA proprietary Thermoplastic Polyurethane material based on aromatic diisocyanate and polyester diol. Developed by Trelleborg Sealing Solutions for hydraulic application sealing elements, Zurcon® Z20 offers high wear and extrusion resistance, low compression set, a wide operating temperature range, minimal swelling in mineral oil and acceptable hydrolysis resistance.
