RU2200150-Z20

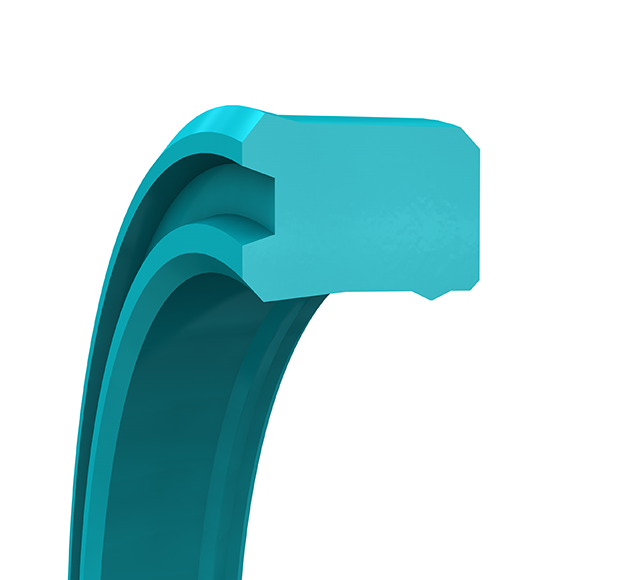

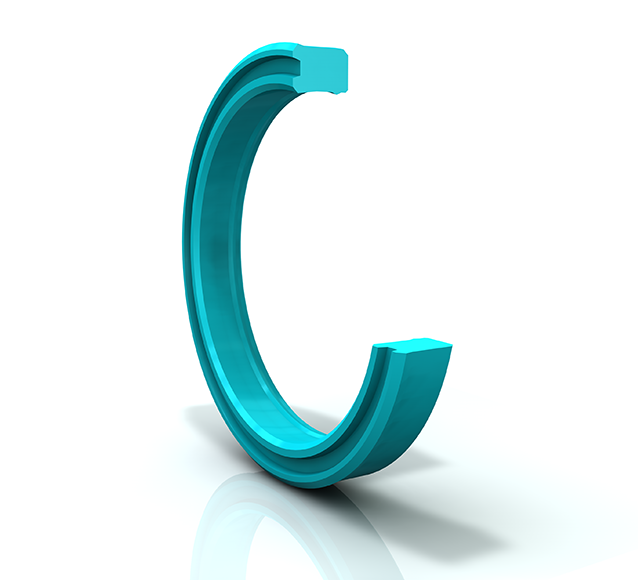

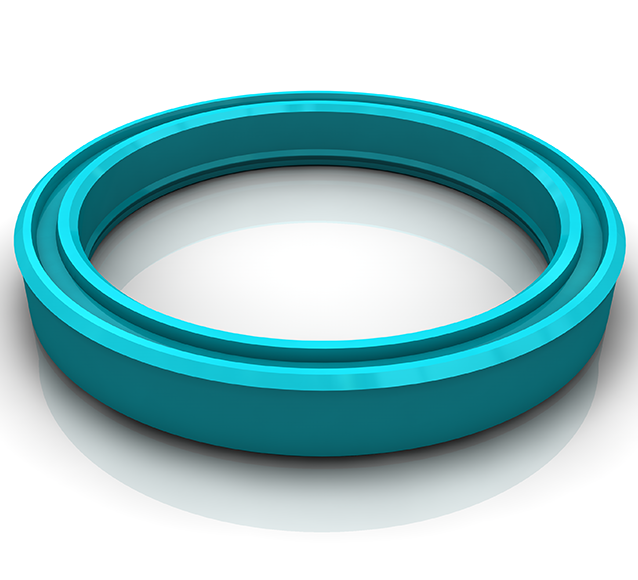

The compact U-Cup RU2 is designed for small grooves. It is thus particularly suitable for use in space-saving designs. The compact form provides a high sealing effect even with low system pressures. The U-Cup has two sealing lips in the dynamic sealing zone. The compact form with two sealing lips provides an improvement in the leakage behavior at low system pressures. Due to the incorporation of an oil trap between the two sealing lips, friction at pressures above approximately 10 MPa is reduced. Furthermore, the second sealing lip prevents the entry of dirt from the atmosphere side.

Rod/U-Cup:

Groove Diameter Outside20 mm

Signature StandardRU2200150-Z20

Quality (10th Digit)-

TSS Article Number (3 to 9)2200150

Type of Article0

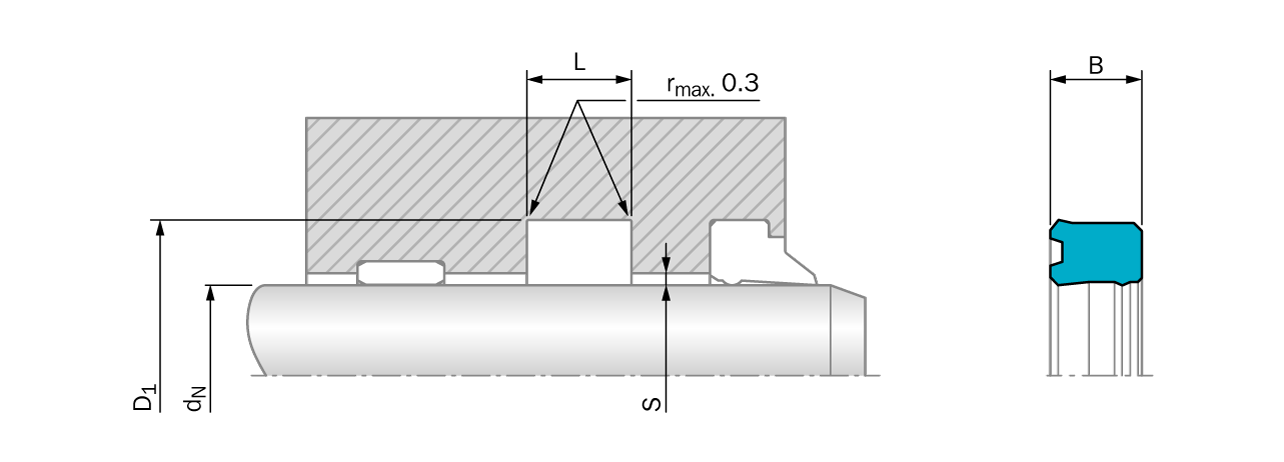

Root Groove Inside Diameter15 mm

Root Groove Outside Diameter20 mm

Root Groove Thickness5 mm

Groove Diameter Inside15 mm

Article GroupRU

Groove Thickness0 mm

Groove Width5 mm

Compound codeZ20

Material Information for the product(s) on this page

Z20

Material data sheet

Hardness:

93 (Shore A)

Commercial Description:

Zurcon® Z20, 93ShA proprietary Thermoplastic Polyurethane material based on aromatic diisocyanate and polyester diol. Developed by Trelleborg Sealing Solutions for hydraulic application sealing elements, Zurcon® Z20 offers high wear and extrusion resistance, low compression set, a wide operating temperature range, minimal swelling in mineral oil and acceptable hydrolysis resistance.
