RT0000160-T40N

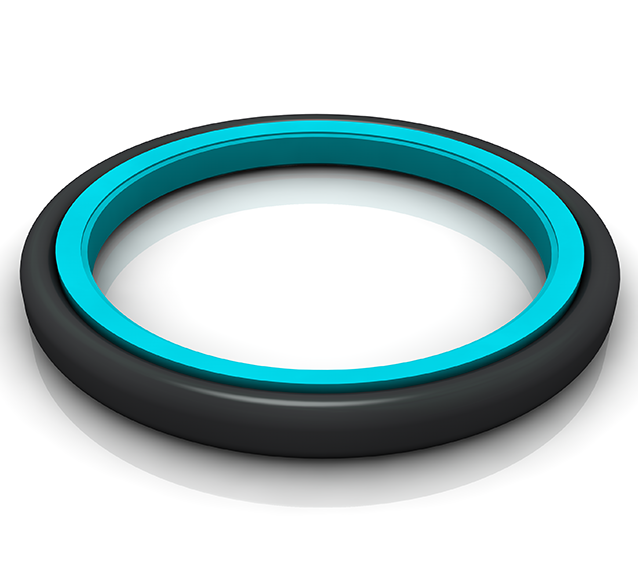

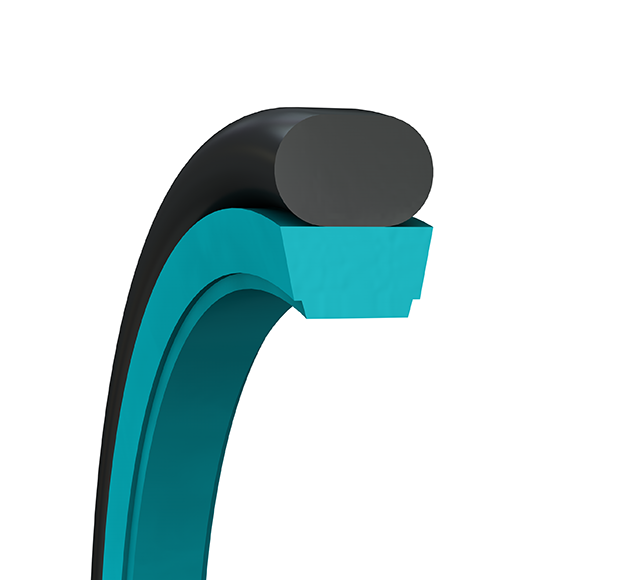

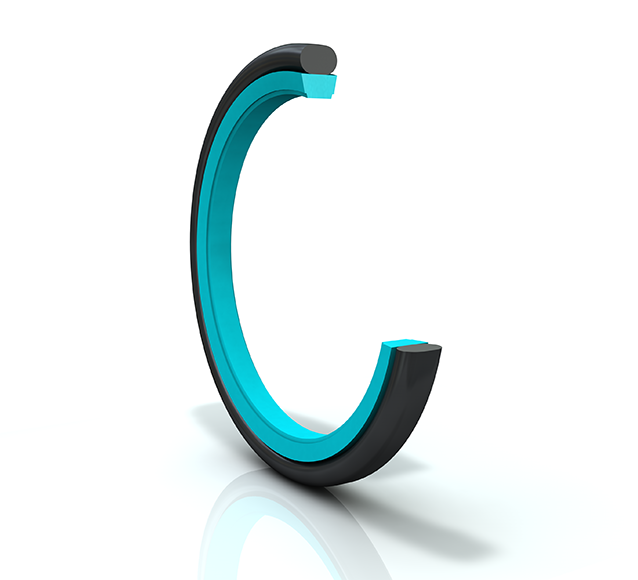

The Glyd Ring® T's benefits are provided by the innovative functional principle of the trapezoidal profile cross section. The sides of the seal profile taper towards the seal surface. The profile can thus retain the robust and compact form typical of rod seals without losing any of the flexibility required to achieve a pressure-related maximum compression. Available in Turcon® or Zurcon® materials.

Rod/GlydRing®T/ Turcon®:

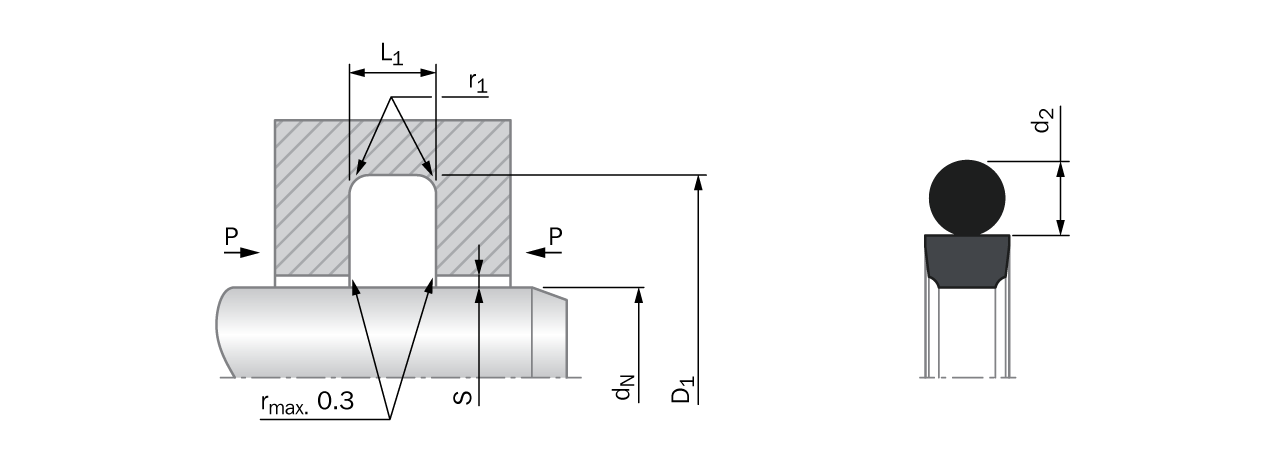

Groove Diameter Outside20.9 mm

Signature StandardRT0000160-T40N

Quality (10th Digit)-

TSS Article Number (3 to 9)160

Type of Article0

Groove Diameter Inside16 mm

Root Groove Inside Diameter16 mm

Root Groove Outside Diameter20.9 mm

Root Groove Width2.2 mm

Article GroupRT

Groove Width2.2 mm

Compound codeT40N

Material Information for the product(s) on this page

T40

Material data sheet

Colour:

Grey

Commercial Description:

Turcon® T40 is a carbon-filled PTFE material commonly used in applications where a low-lubricating hydraulic fluid is used. This material is often used in high-freqency and short stroke applications. Because of the surface texture of this material, it is best used for sealing liquids as opposed to gasses.

Basic Material:

PTFE

Filler:

Virgin PTFE compounded with carbon fibre

N7004

Material data sheet

Hardness:

70 (Shore A)

Commercial Description:

A 70 durometer, NBR elastomer. The properties of the nitrile rubber depend mainly on the ACN content which ranges between 18 % and 50 %. In general it has good mechanical properties with an operating temperature range of between -30 °C and +100 °C. NBR is mostly used with mineral based oils and greases and is a good choice for standard applications.
