RG4500080-T46

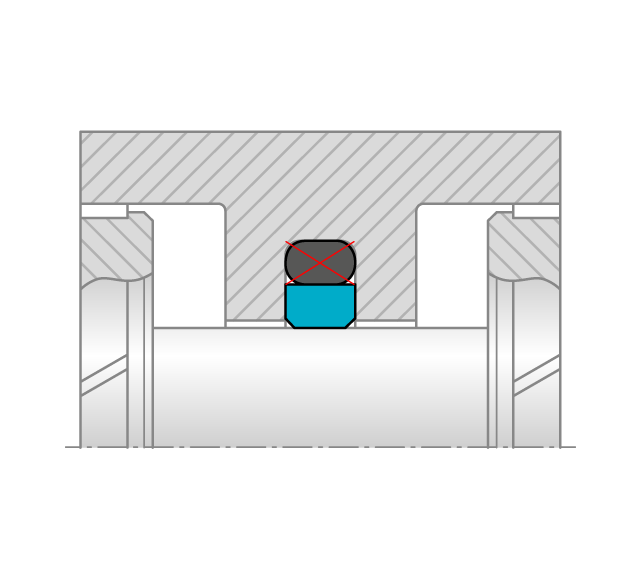

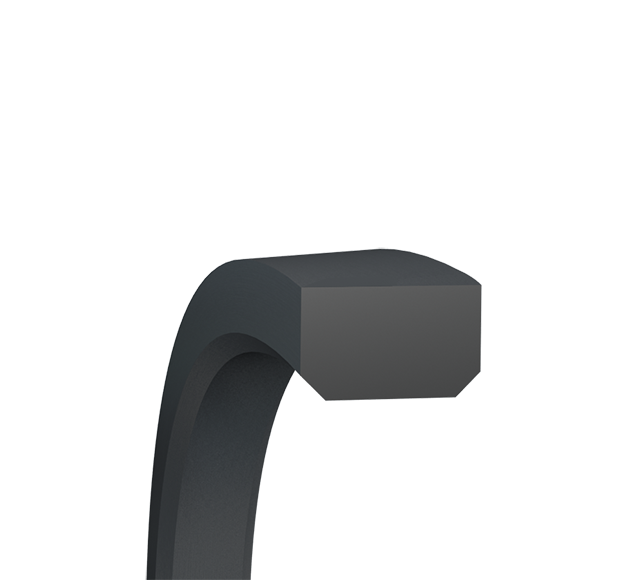

Glyd Ring® is a double-acting O-Ring energized rod seal for dynamic applications. Glyd Ring® provides low friction with no stick-slip, minimal breakout force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.

Rod/GlydRing®/Turcon®:

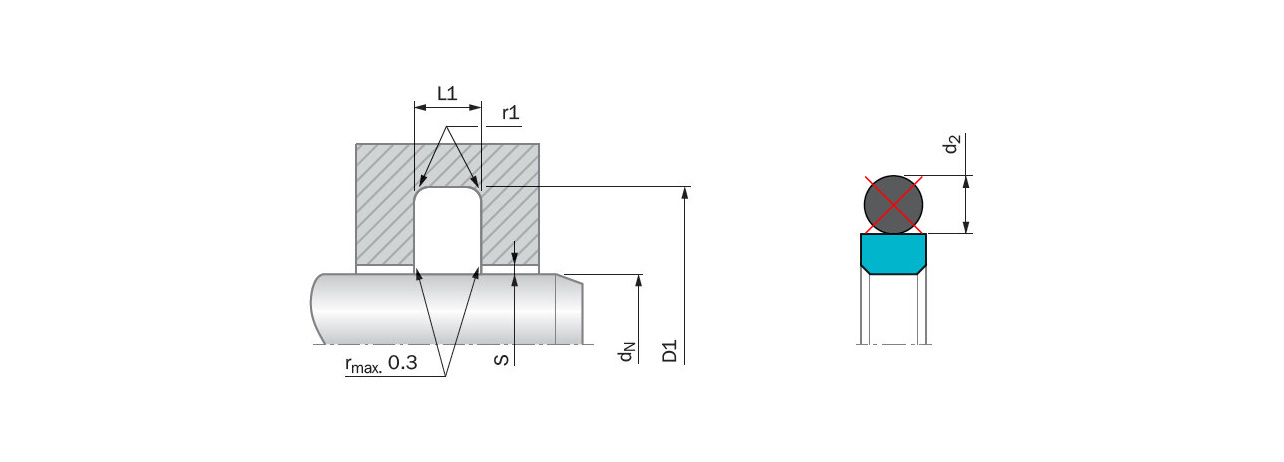

Groove Diameter Outside12.9 mm

Ring Width1 mm

Ring Diameter Outside9.75 mm

Ring Diameter Inside7.75 mm

Signature StandardRG4500080-T46

Quality (10th Digit)-

TSS Article Number (3 to 9)4500080

Type of Article0

Groove Diameter Inside8 mm

Root Ring Inside Diameter7.75 mm

Root Groove Inside Diameter8 mm

Root Groove Outside Diameter12.9 mm

Root Groove Thickness2.45 mm

Root Groove Width2.2 mm

Article GroupRG

Root Ring Length0 mm

Legacy ID from KOM2RG4500080-T46

Root Ring Outside Diameter9.75 mm

Root Ring Thickness2 mm

Ring Thickness2 mm

Groove Thickness2.45 mm

Groove Width2.2 mm

Ring Length0 mm

Root Ring Width1 mm

Compound codeT46

Seals Helsingor Material Class:

Seal Tube OD Tolerance Max16 mm

Seal Tube ID Tolerance Min-16 mm

Seal Tube OD Tolerance From11.05 mm

Seal Tube ID Tolerance Max-1.3 mm

Seal Tube OD Tolerance Min1.3 mm

Seal Tube OD Tolerance To25.75 mm

Seal Tube ID Tolerance To6.45 mm

Seal Tube ID Tolerance From-8.25 mm

Class Dependencies200000047711

Material Number200000047711

Compound Type110

Material Information for the product(s) on this page

T46

Material data sheet

Colour:

Greyish to Dark Brown

Commercial Description:

Turcon® T46 is a blend of PTFE, bronze, and a proprietary Turcon® filler and is backed by years of time-tested performance and offers a balance of performance and cost. This material has a high extrusion resistance and has very good wear properties. For medium to heavy applications with reciprocating movements in mineral oils and other media with good lubrication. Used in article numbers ending in T46N and T46V.
