PVC301000-T40SM

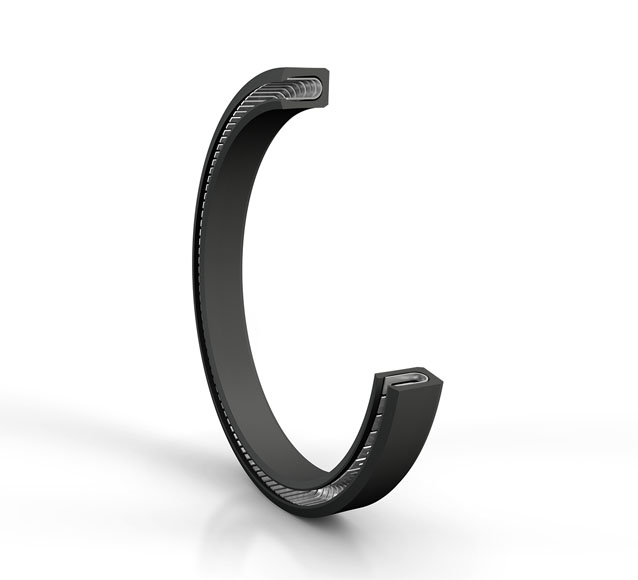

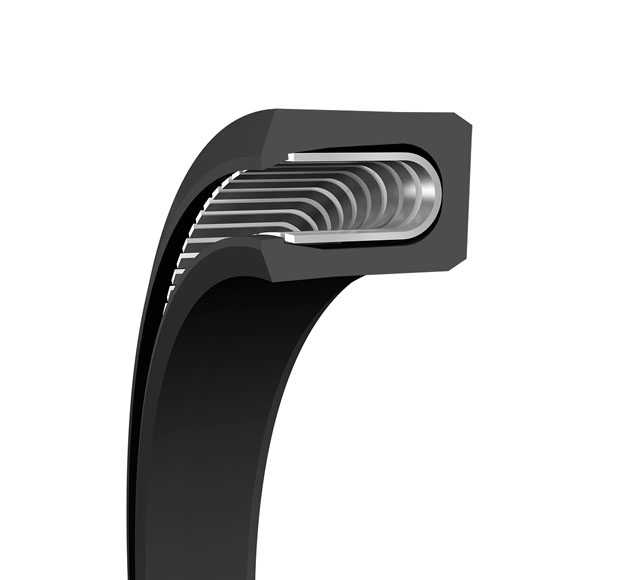

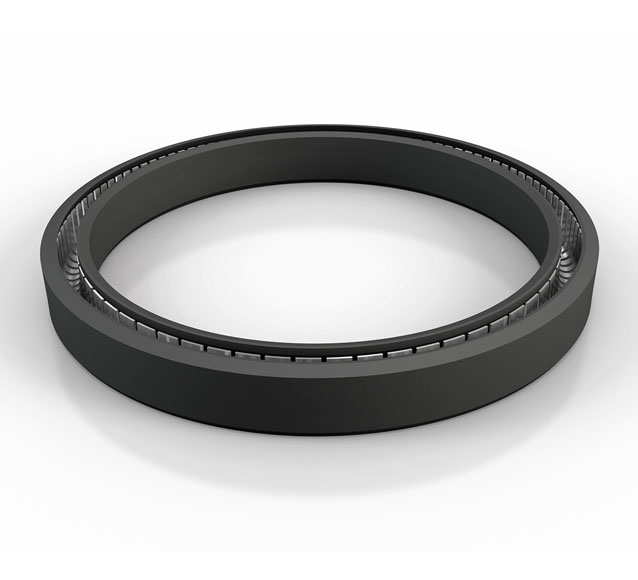

A single-acting sealing element comprised of a U-shaped PTFE ring and metallic energizing finger spring. It offers low friction with no stick-slip, minimal breakout force and high wear resistance. Effective as a scraper and resistant to most liquids and chemicals. Available in Turcon® or Zurcon® materials.

Piston/Variseal®:

Groove Diameter Outside100 mm

Signature StandardPVC301000-T40SM

TSS Article Number (3 to 9)C301000

Quality (10th Digit)-

Type of Article0

Root Groove Inside Diameter90.6 mm

Root Groove Outside Diameter100 mm

Root Groove Width7.1 mm

Article GroupPV

Groove Diameter Inside90.6 mm

Groove Thickness4.7 mm

Groove Width7.1 mm

Compound codeT40SM

Material Information for the product(s) on this page

T40SM

Commercial Description:

Turcon® T40 is a carbon-filled PTFE material commonly used in applications where a low-lubricating hydraulic fluid is used. This material is often used in high-freqency and short stroke applications. Because of the surface texture of this material, it is best used for sealing liquids as opposed to gases. Comes with a stainless steel spring.
