PVC000100-T40SM

A single-acting sealing element comprised of a U-shaped PTFE ring and metallic energizing finger spring. It offers low friction with no stick-slip, minimal breakout force and high wear resistance. Effective as a scraper and resistant to most liquids and chemicals. Available in Turcon® or Zurcon® materials.

Piston/Variseal®:

Groove Diameter Outside10 mm

Signature StandardPVC000100-T40SM

TSS Article Number (3 to 9)C000100

Quality (10th Digit)-

Type of Article0

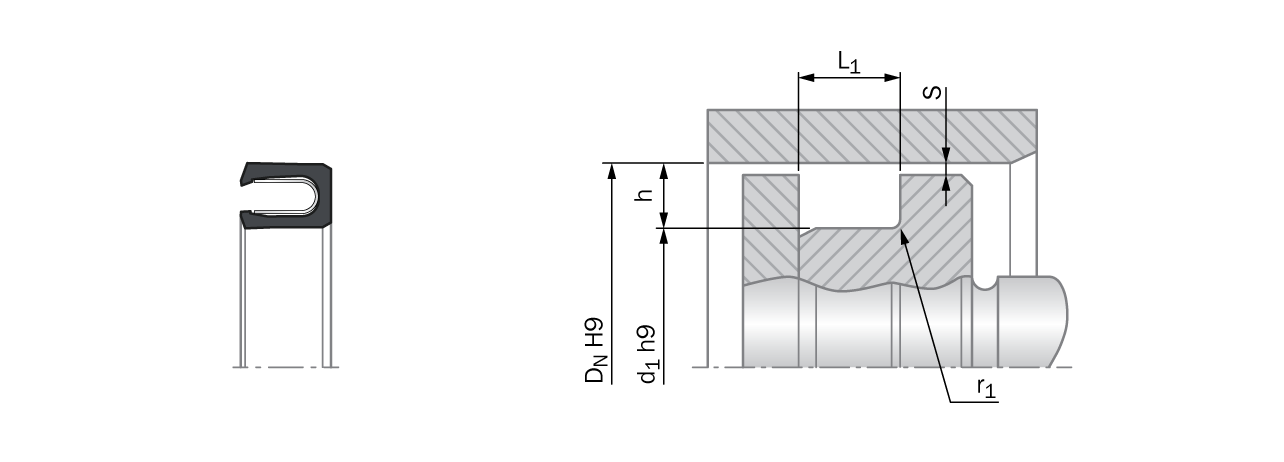

Root Groove Inside Diameter7.1 mm

Root Groove Outside Diameter10 mm

Root Groove Width2.4 mm

Article GroupPV

Groove Diameter Inside7.1 mm

Groove Thickness1.45 mm

Groove Width2.4 mm

Compound codeT40SM

Material Information for the product(s) on this page

T40SM

Commercial Description:

Turcon® T40 is a carbon-filled PTFE material commonly used in applications where a low-lubricating hydraulic fluid is used. This material is often used in high-freqency and short stroke applications. Because of the surface texture of this material, it is best used for sealing liquids as opposed to gases. Comes with a stainless steel spring.
