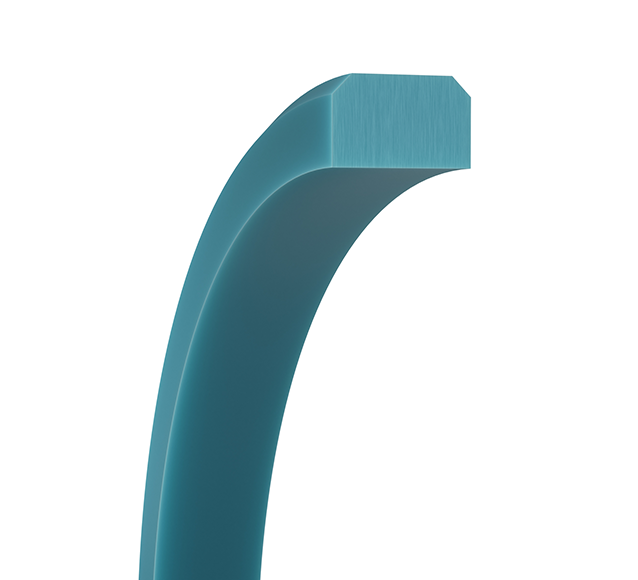

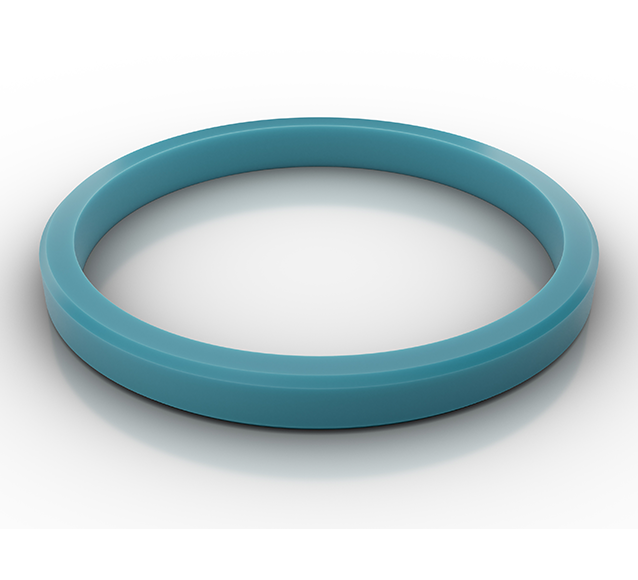

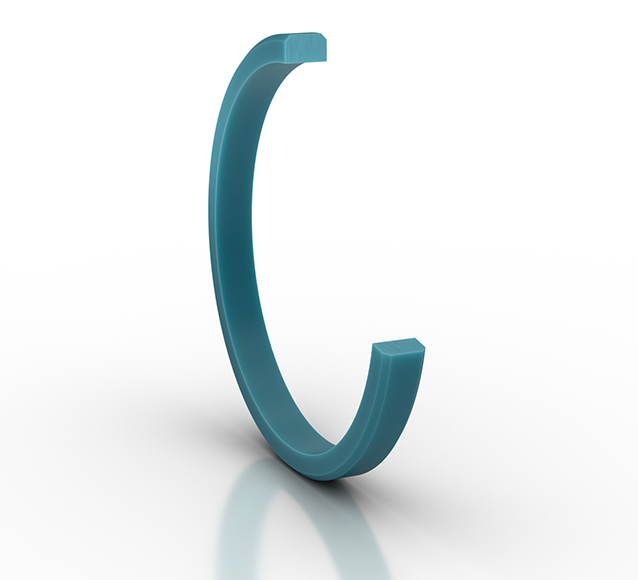

Glyd Ring® is a double-acting O-Ring energized piston seal for dynamic applications. Glyd Ring® provides low friction with no stick-slip, minimal breakout force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/GlydRing®Turcon®:
Groove Diameter Outside200 mm
Ring Width5.9 mm
Signature StandardPG4602000-T46
TSS Article Number (3 to 9)4602000
Quality (10th Digit)-
Type of Article0
Root Ring Inside Diameter194 mm
Root Groove Inside Diameter184.5 mm
Root Groove Outside Diameter200 mm
Root Groove Thickness7.75 mm
Root Groove Width6.3 mm
Groove Diameter Inside184.5 mm
Article GroupPG
Root Ring Length0 mm
Legacy ID from KOM2PG4602000-T46
Root Ring Outside Diameter200.9 mm
Root Ring Thickness3.45 mm
Root Ring Width5.9 mm
Ring Thickness3.45 mm
Groove Thickness7.75 mm
Groove Width6.3 mm
Ring Length0 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube OD Tolerance From203.9 mm
Seal Tube ID Tolerance Max-3 mm
Seal Tube OD Tolerance Min3 mm
Ring Diameter Outside200.9 mm
Seal Tube OD Tolerance To250.9 mm
Seal Tube ID Tolerance To191 mm
Seal Tube ID Tolerance From144 mm
Ring Diameter Inside194 mm
Class Dependencies200000039979
Material Number200000039979
Compound Type110
Compound codeT46
Material Information for the product(s) on this page
T46
Colour:
Greyish to Dark Brown
Commercial Description:
Turcon® T46 is a blend of PTFE, bronze, and a proprietary Turcon® filler and is backed by years of time-tested performance and offers a balance of performance and cost. This material has a high extrusion resistance and has very good wear properties. For medium to heavy applications with reciprocating movements in mineral oils and other media with good lubrication. Used in article numbers ending in T46N and T46V.
Basic Material:
PTFE
Filler:
Virgin PTFE compounded with Turcon® and bronze
