PDD200300-T05

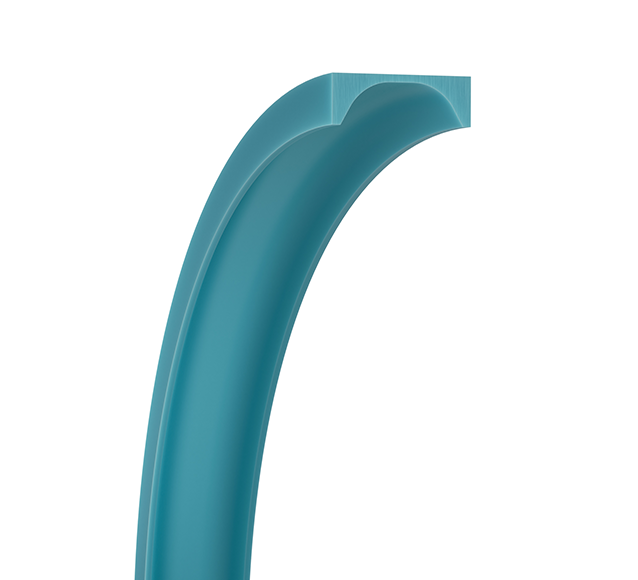

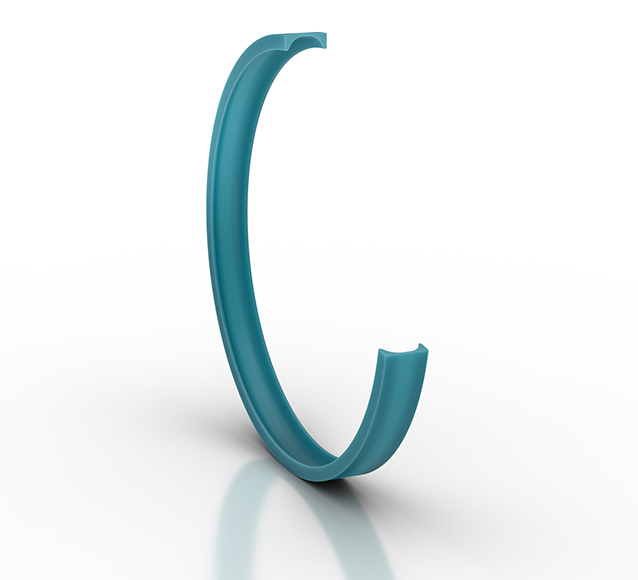

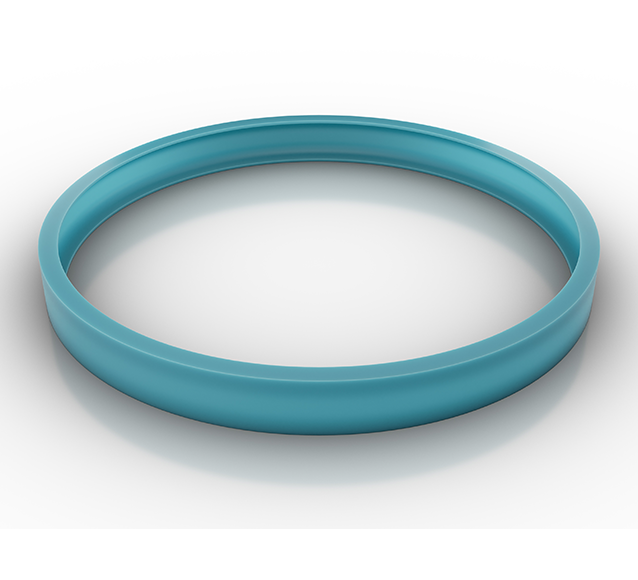

The Double Delta® is a double-acting PTFE sealing element which is energized by an elastomer O-Ring. The Double Delta® seal can be fitted in existing O-Ring grooves (US standard AS 568 A, MIL-P-5514) and it demonstrates good friction properties, stick-slip-free starting and excellent dry running. The Double Delta® is used in light and medium duty industrial hydraulics. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.

Pist/DoubleDelta®Turcon®:

Groove Diameter Outside30 mm

Signature StandardPDD200300-T05

TSS Article Number (3 to 9)D200300

Quality (10th Digit)-

Type of Article0

Root Groove Inside Diameter23.8 mm

Root Groove Outside Diameter30 mm

Root Groove Width4.8 mm

Groove Diameter Inside23.8 mm

Article GroupPD

Groove Thickness3.1 mm

Groove Width4.8 mm

Compound codeT05

Technical Details (PDF)Installation Guide (PDF)Installation Guide (PDF)Installation Guide (PDF)Installation Guide (PDF)Installation Guide (PDF)

Material Information for the product(s) on this page

T05

Material data sheet

Commercial Description:

Turcon® T05 is a PTFE-based material offering low friction and very good sealing properties and is widely recognized by its turquoise color. This material has a high percentage of PTFE and offers good performance in low-pressure, light-duty applications.
