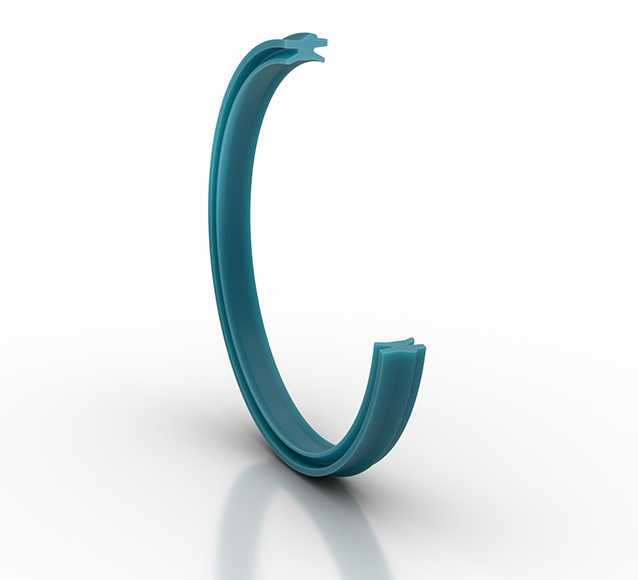

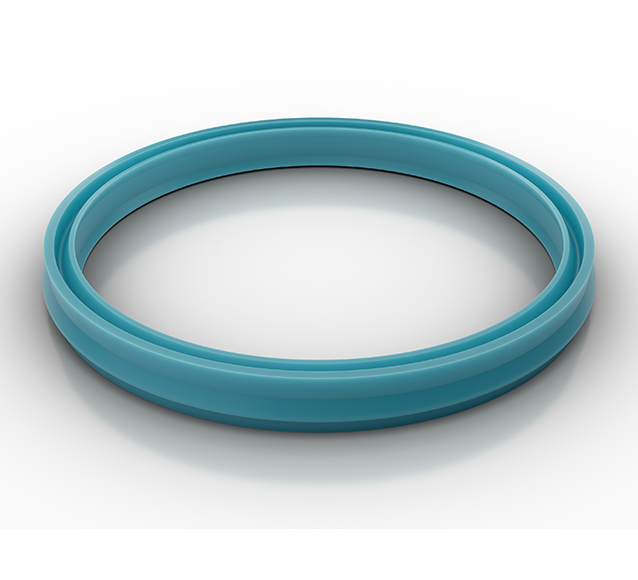

Asymmetric lip seal with sealing lip and scraper lip. Very good protection against dirt ingress. Special groove and seal design allows fast installation either automatically or manually.
Pneumatic -Rod Seal.:
Groove Diameter Outside22 mm
TSS Article Number (3 to 9)AN10120
Signature StandardARAN10120-WU9E1
Type of Article0
Quality (10th Digit)-

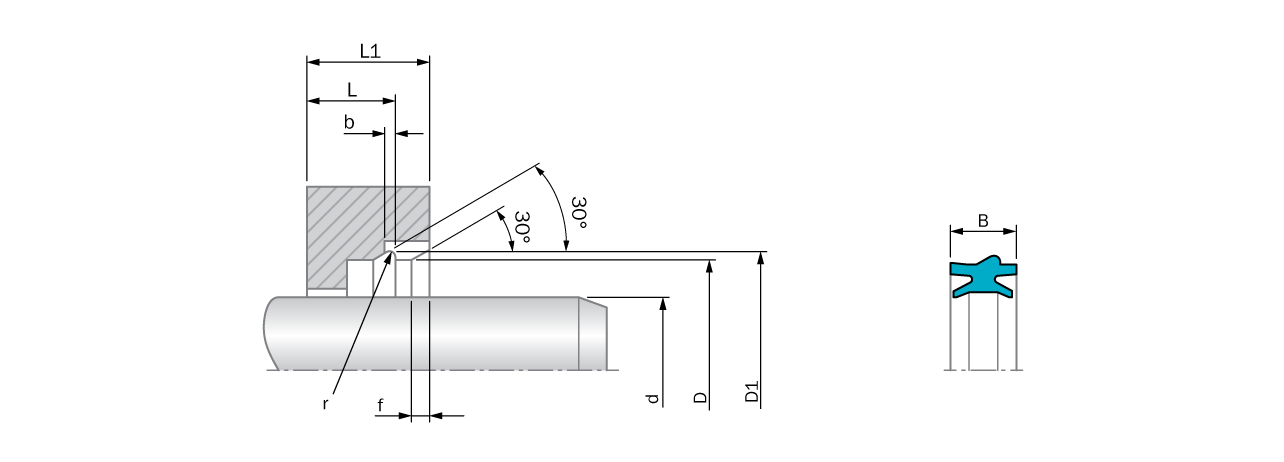

Root Groove Inside Diameter12 mm
Root Groove Outside Diameter22 mm
Root Groove Width13 mm
Article GroupAR
Groove Diameter Inside12 mm
Groove Width13 mm
Compound codeWU9E1
