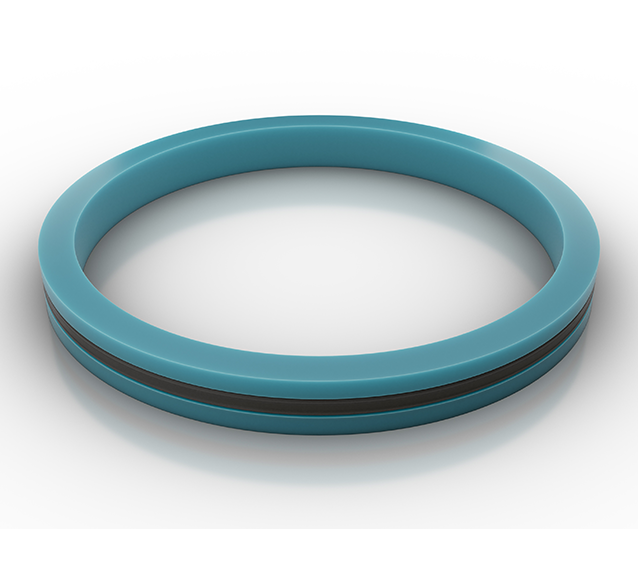

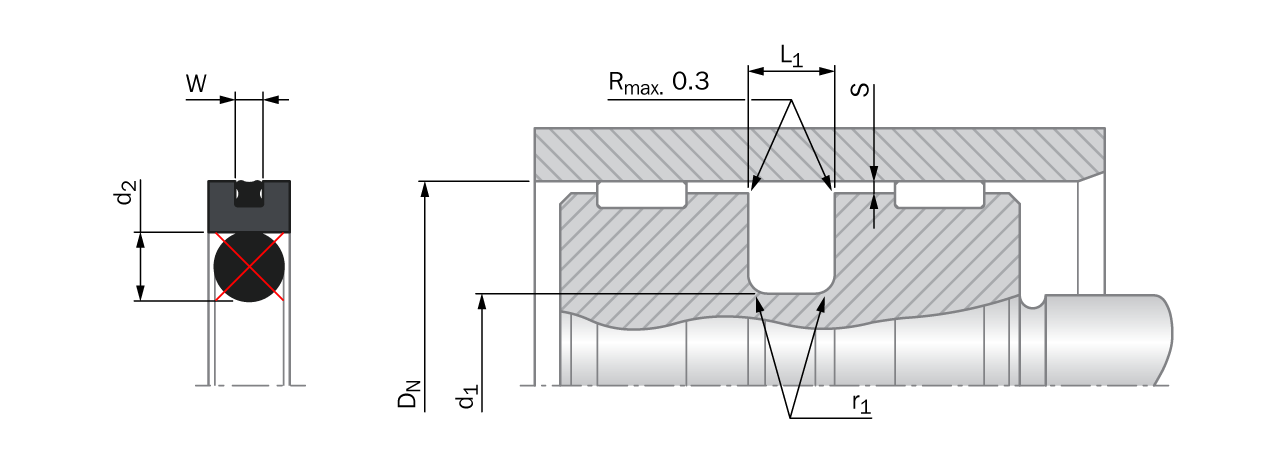

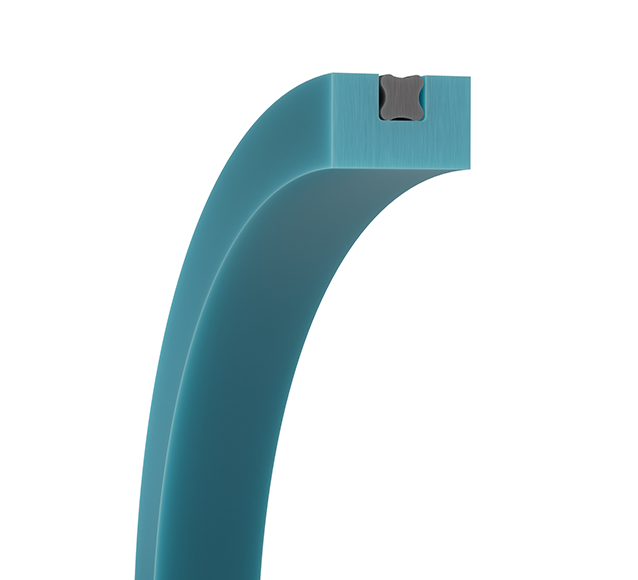

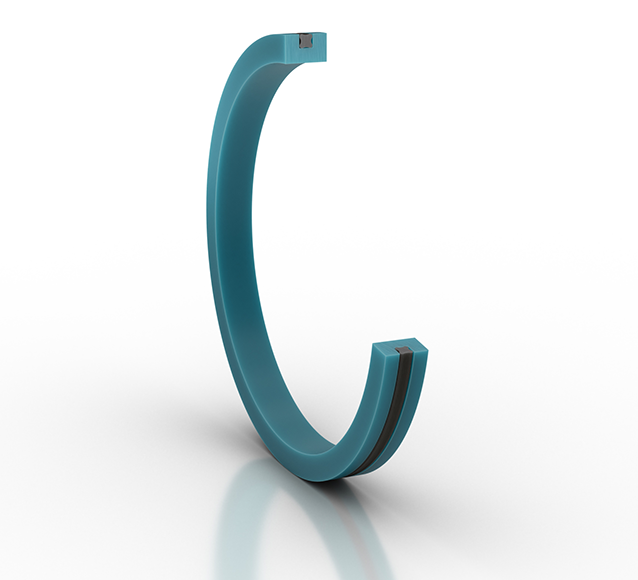

A double-acting O-Ring energized seal developed for sealing between two media such as fluid and gas. It incorporates a limited footprint Quad-Ring® / X-Ring inset into the dynamic sealing face. Installed in grooves to ISO 7425. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/AQ-Seal®/Turcon®:
Groove Diameter Outside32 mm
Ring Width3.93 mm
Signature StandardPQ1200320-M12
TSS Article Number (3 to 9)1200320
Quality (10th Digit)-
Type of Article0
Root Ring Inside Diameter27.2 mm
Root Groove Inside Diameter21 mm
Root Groove Outside Diameter32 mm
Root Groove Thickness5.5 mm
Root Groove Width4.2 mm
Groove Diameter Inside21 mm
Article GroupPQ
Root Ring Length0 mm
Legacy ID from KOM2PQ1200320-M12
Root Ring Outside Diameter32.3 mm
Root Ring Thickness2.55 mm
Root Ring Width3.93 mm
Ring Thickness2.55 mm
Groove Thickness5.5 mm
Groove Width4.2 mm
Ring Length0 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance Max16 mm
Seal Tube ID Tolerance Min-16 mm
Seal Tube OD Tolerance From33.6 mm
Seal Tube ID Tolerance Max-1.3 mm
Seal Tube OD Tolerance Min1.3 mm
Ring Diameter Outside32.3 mm
Seal Tube OD Tolerance To48.3 mm
Seal Tube ID Tolerance To25.9 mm
Seal Tube ID Tolerance From11.2 mm
Ring Diameter Inside27.2 mm
Class Dependencies200000058425
Material Number200000058425
Compound Type110
Compound codeM12
Material Information for the product(s) on this page
M12
Gravity Unit:
g/cm³
Specific Gravity:
2.31
Color:
Dark Grey
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
34
Material Type:
PTFE
Material:
M12
Gravity Tolerance:
+/-0.03
Material Code Class:
Thermoplastic
