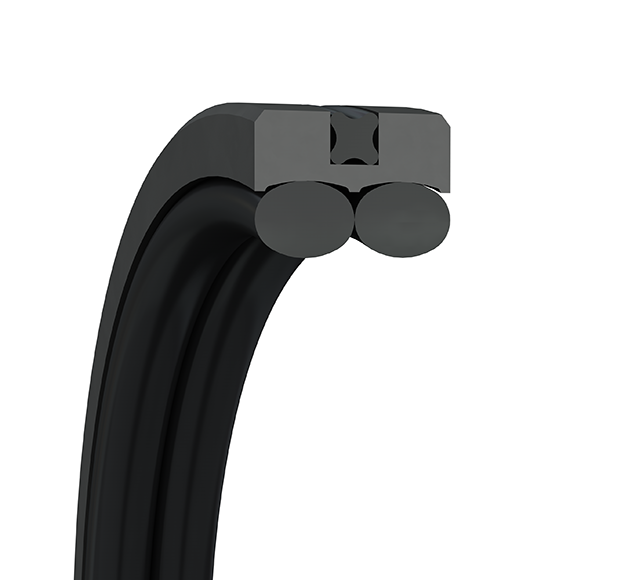

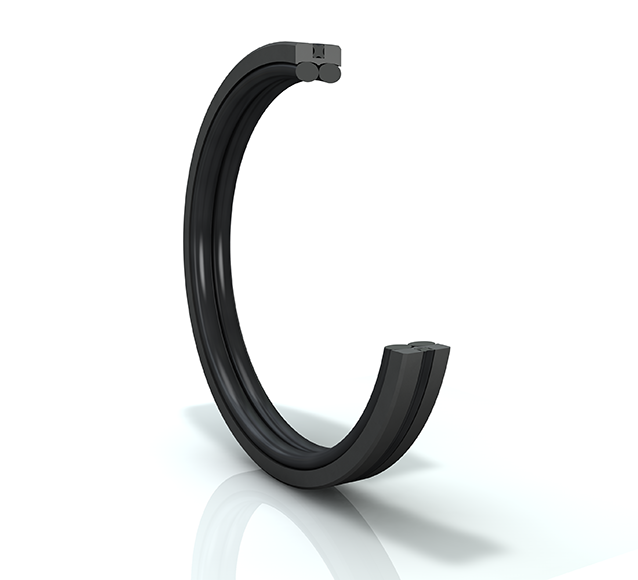

A further development of the standard AQ Seal® , the double-acting AQ Seal® 5 incorporates an elastomer Quad-Ring® / X-Ring and an elastomer or polyurethane Bean Seal in the dynamic sealing face. It is energized by two O‑Rings to improve sealing behavior. Available in Turcon® or Zurcon® materials.
Piston/AQ-Seal®/Turcon®:
Groove Diameter Outside200 mm
Signature StandardPQ0302000-T46N
TSS Article Number (3 to 9)302000
Quality (10th Digit)-
Type of Article0

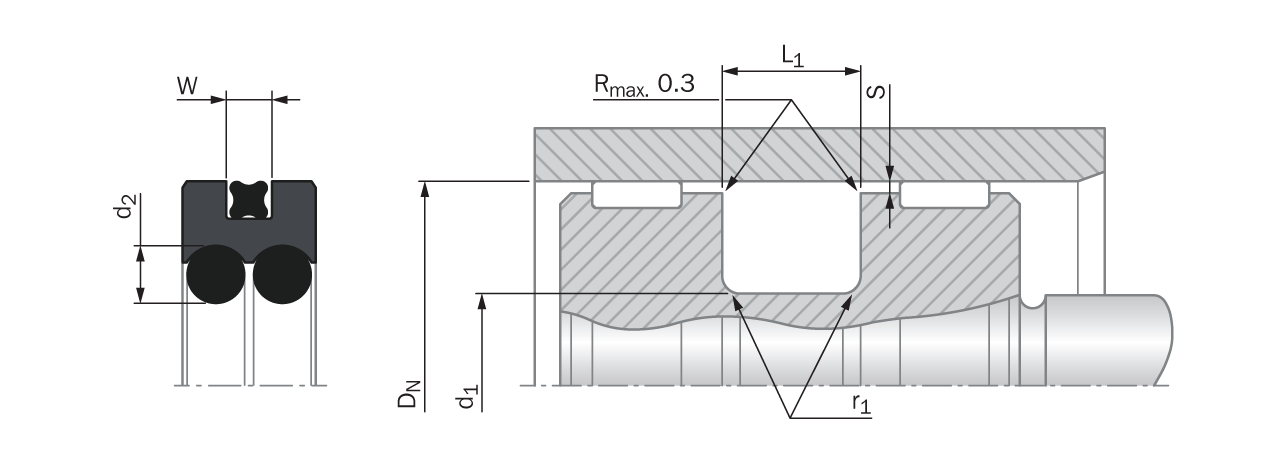

Root Groove Inside Diameter182 mm
Root Groove Outside Diameter200 mm
Root Groove Thickness9 mm
Root Groove Width12.3 mm
Groove Diameter Inside182 mm
Article GroupPQ
Groove Thickness0 mm
Groove Width12.3 mm
Compound codeT46N
Material Information for the product(s) on this page
N7083
Specific Gravity:
1.24
Shore A Hardness:
70+/- 5
Gravity Unit:
g/cm³
Hardness unit:
Shore A
Material:
N7083
Material Type:
NBR
Color:
Black
Minimum Temperature:
-30
Maximum Temperature:
100
Material Code Class:
Elastomer
Minimum Hardness:
70
Gravity Tolerance:
+/-0.02
Maximum Hardness:
70
Hardness Tolerance:
+/- 5
T46
Color:
Greyish to Dark Brown
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Gravity Tolerance:
+/-0.04
Material:
T46
Material Code Class:
Thermoplastic
Specific Gravity:
3.07
Material Type:
PTFE
Gravity Unit:
g/cm³
