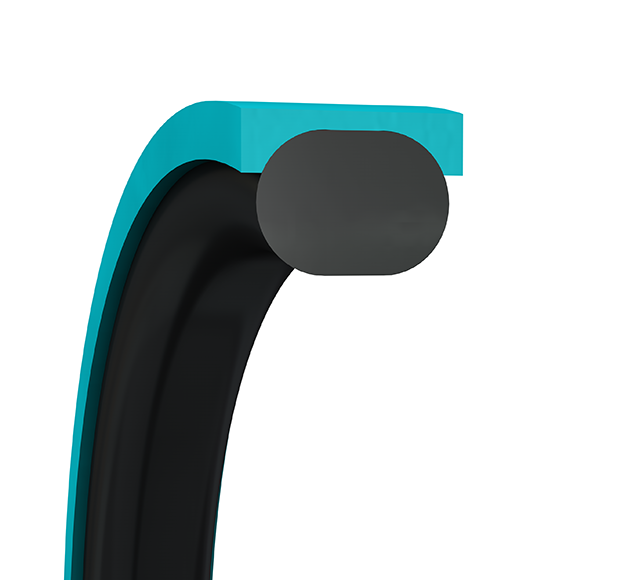

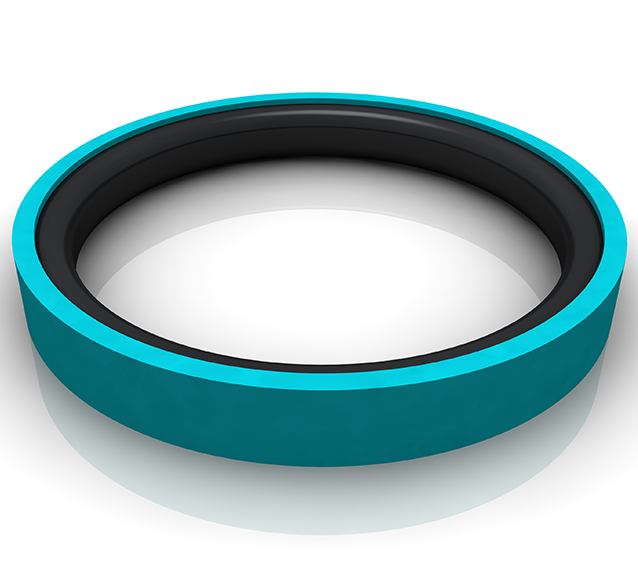

The Double Delta® is a double-acting PTFE sealing element which is energized by an elastomer O-Ring. The Double Delta® seal can be fitted in existing O-Ring grooves (US standard AS 568 A, MIL-P-5514) and it demonstrates good friction properties, stick-slip-free starting and excellent dry running. The Double Delta® is used in light and medium duty industrial hydraulics. Available in Turcon® or Zurcon® materials.
Pist/DoubleDelta®Turcon®:
Groove Diameter Outside193 mm
Signature StandardPDD401930-T24N
TSS Article Number (3 to 9)D401930
Quality (10th Digit)-
Type of Article0

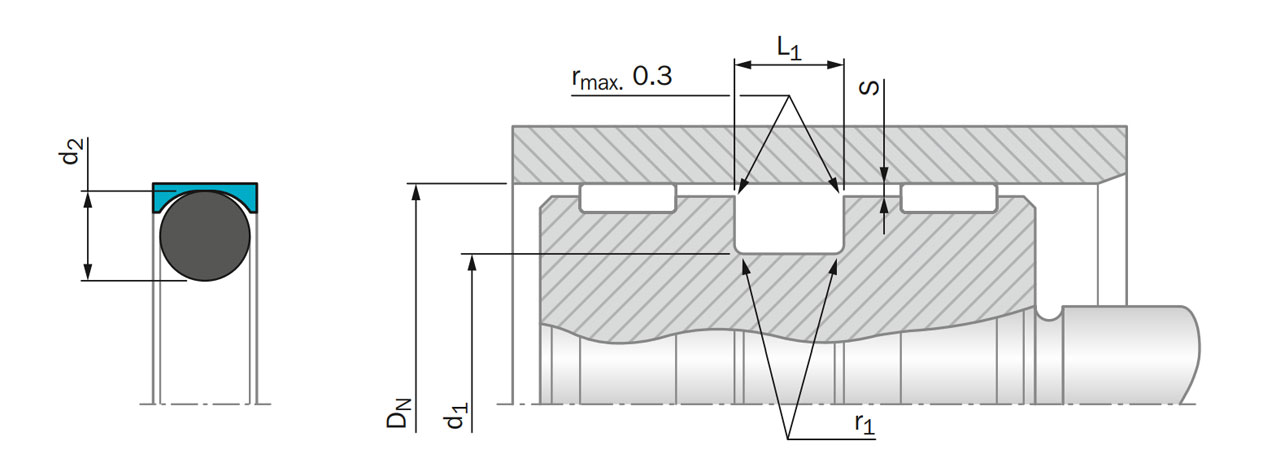

Root Groove Inside Diameter180.8 mm
Root Groove Outside Diameter193 mm
Root Groove Thickness9.5 mm
Groove Diameter Inside180.8 mm
Article GroupPD
Groove Thickness0 mm
Groove Width9.5 mm
Compound codeT24N
Material Information for the product(s) on this page
N7083
Specific Gravity:
1.24
Shore A Hardness:
70+/- 5
Gravity Unit:
g/cm³
Hardness unit:
Shore A
Material:
N7083
Material Type:
NBR
Color:
Black
Minimum Temperature:
-30
Maximum Temperature:
100
Material Code Class:
Elastomer
Minimum Hardness:
70
Gravity Tolerance:
+/-0.02
Maximum Hardness:
70
Hardness Tolerance:
+/- 5
T24
Gravity Unit:
g/cm³
Material Type:
PTFE
Gravity Tolerance:
+/-0.02
Specific Gravity:
2.11
Maximum Temperature:
260
Material:
T24
Ball Hardness:
28
Color:
Black
Material Code Class:
Thermoplastic
Minimum Temperature:
-200
