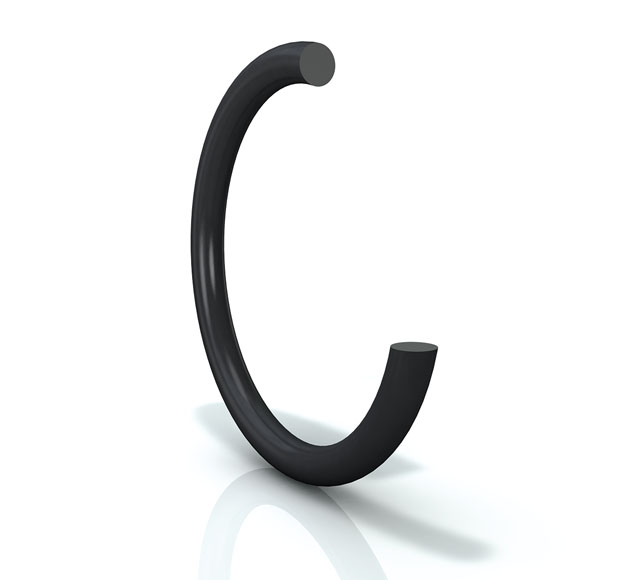

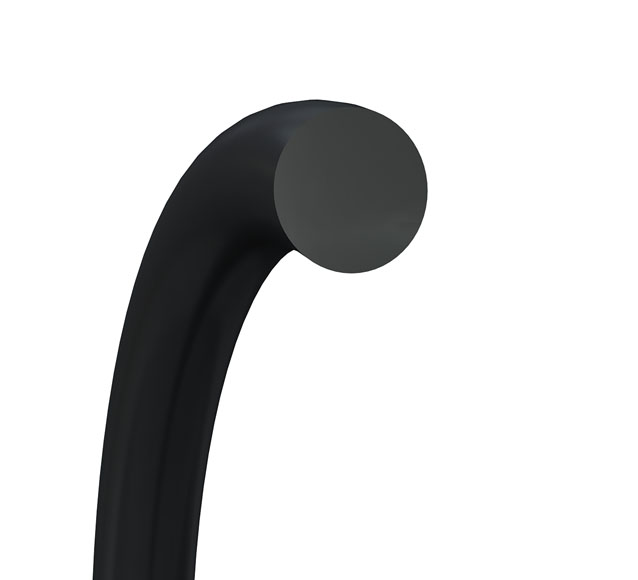

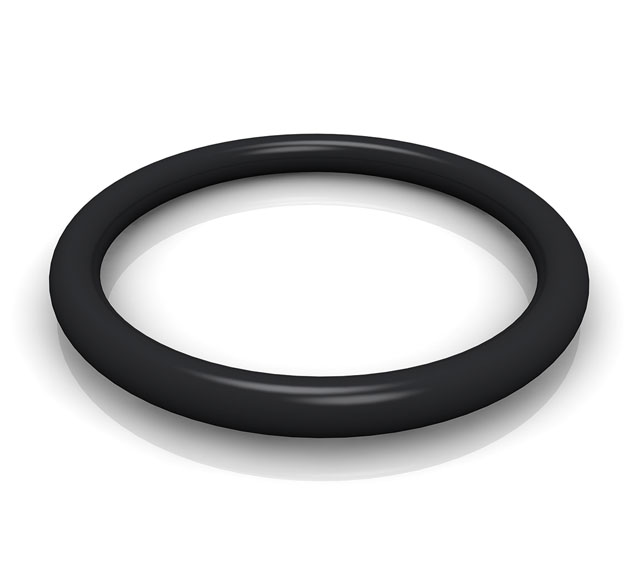

O-Rings offer an efficient and economical sealing element for a wide range of static or dynamic applications and can be used to seal practically all liquid and gaseous media.
O-Ring/standard:
Ring Width2.2 mm
Signature StandardOR2201130-N9010
TSS Article Number (3 to 9)2201130
QCC for O-rings-
Type of Article0
Root Ring Inside Diameter11.3 mm
Article GroupOR
Root Ring Width2.2 mm
Compound codeN9010
Ring Diameter Inside11.3 mm
Material Information for the product(s) on this page
N9010
Minimum Hardness:
90
Material:
N9010
Shore A Hardness:
90+/- 5
Material Code Class:
Elastomer
Gravity Tolerance:
+/-0.02
Maximum Temperature:
100
Hardness Tolerance:
+/- 5
Specific Gravity:
1.33
Maximum Hardness:
90
Material Type:
NBR
Gravity Unit:
g/cm³
Hardness unit:
Shore A
Minimum Temperature:
-25
Color:
Black
