APDS00160-WU9E1

Please login to see the prices

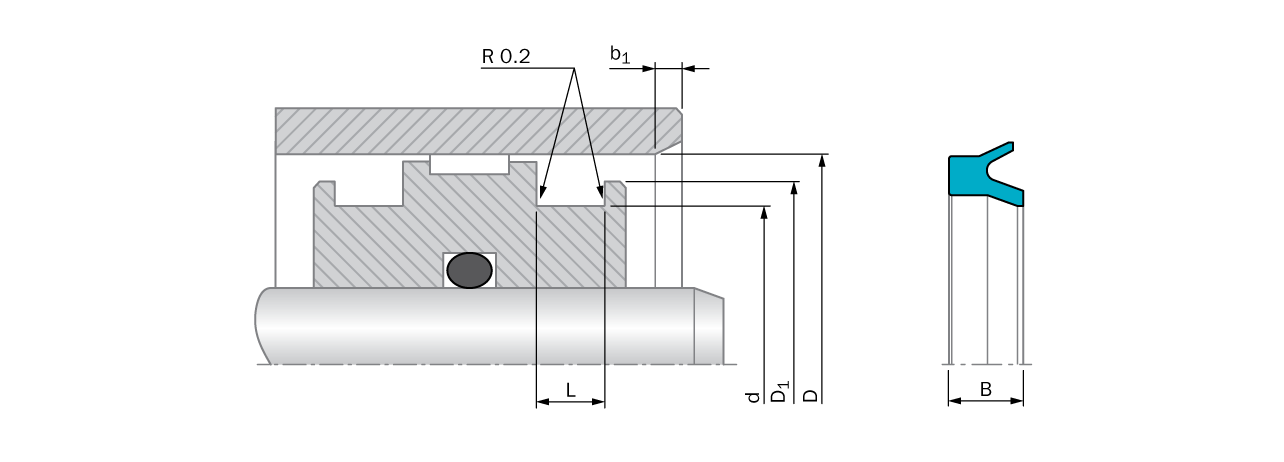

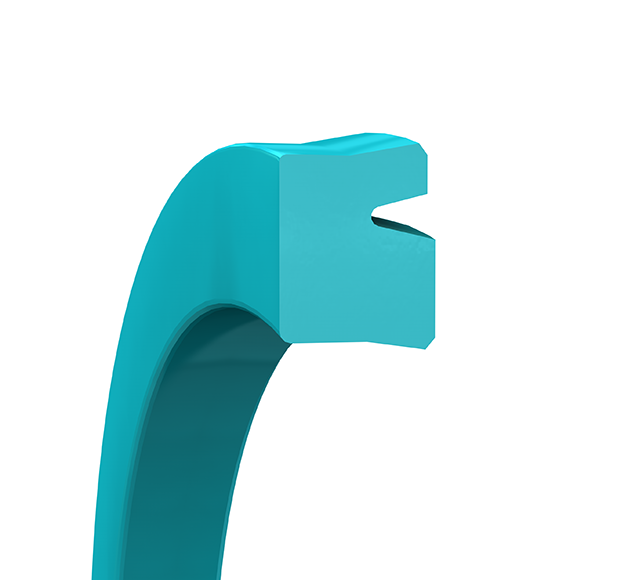

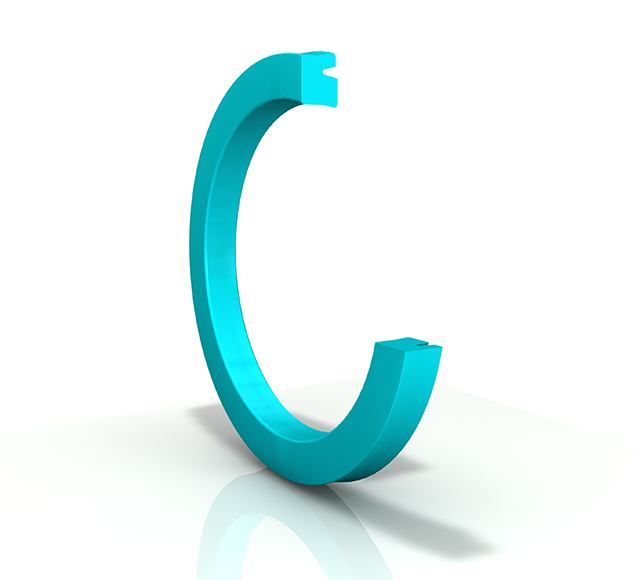

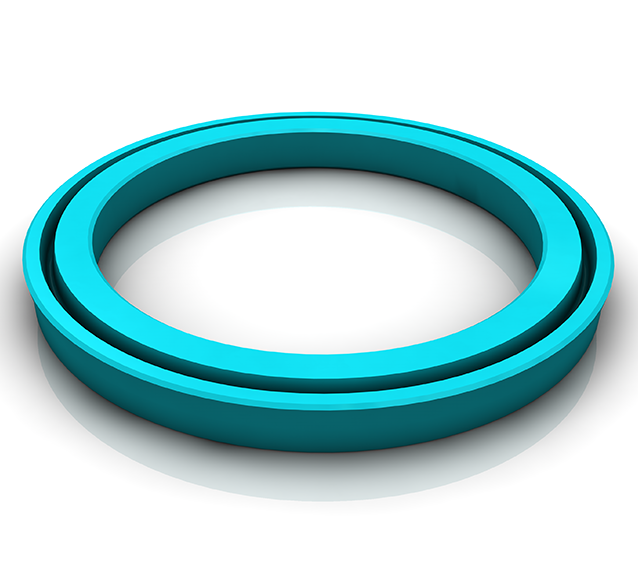

Single acting piston seal with U-shaped cross-section. For double acting pistons, two seals are used ”back to back”. Same design as APDE-type, but lower interference of the dynamic lip for reduced friction and break-off pressure. Recommended for return spring cylinders. Note: good guiding system required. Suitable for cylinders with pneumatic cushioning.

Pneumatic -Piston Seal-:

Groove Diameter Outside16 mm

TSS Article Number (3 to 9)DS00160

Signature StandardAPDS00160-WU9E1

Type of Article0

Quality (10th Digit)-

Root Groove Inside Diameter10 mm

Root Groove Outside Diameter16 mm

Root Groove Width3 mm

Article GroupAP

Groove Diameter Inside10 mm

Groove Width3 mm

Compound codeWU9E1

Material Information for the product(s) on this page

WU9E1

WU9E1 Engineering Data Sheet_Ed1_rev0

Color:

Grey

Gravity Unit:

g/cm³

Maximum Temperature:

80

Material Code Class:

Thermoplastic

Specific Gravity:

1.14

Hardness Tolerance:

+/- 2

Minimum Temperature:

-40

Gravity Tolerance:

+/-0.02

Maximum Hardness:

91

Material:

WU9E1

Shore A Hardness:

91+/- 2

Hardness unit:

Shore A

Minimum Hardness:

91

Material Type:

PUR
