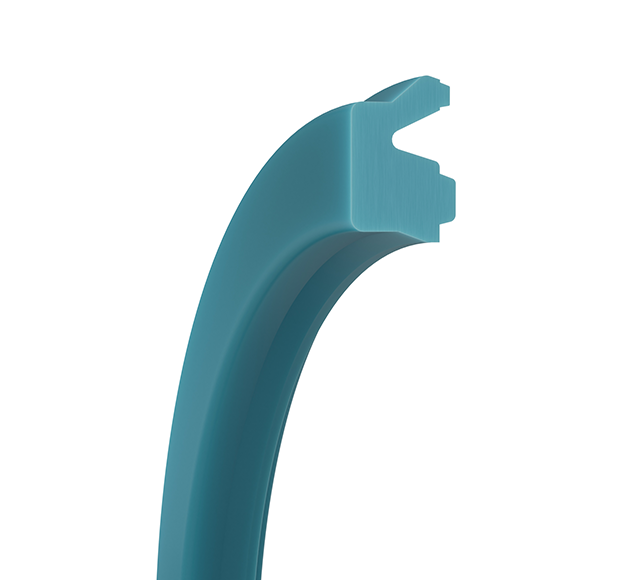

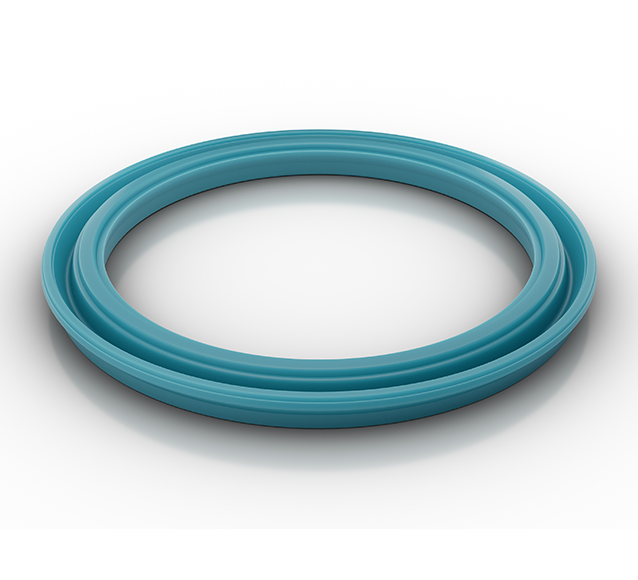

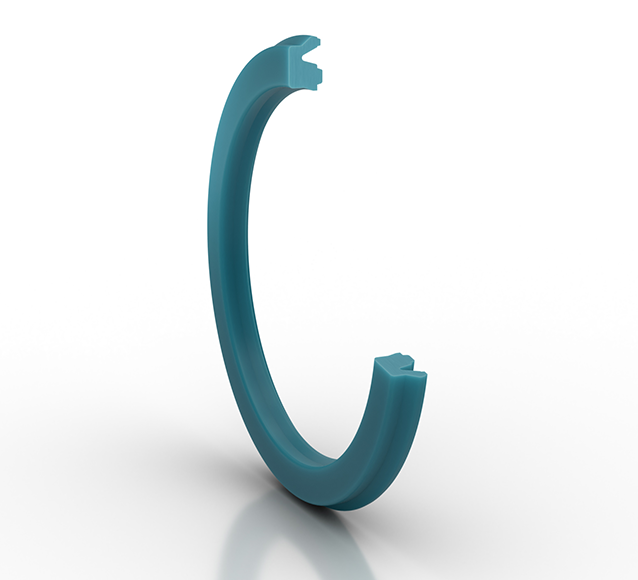

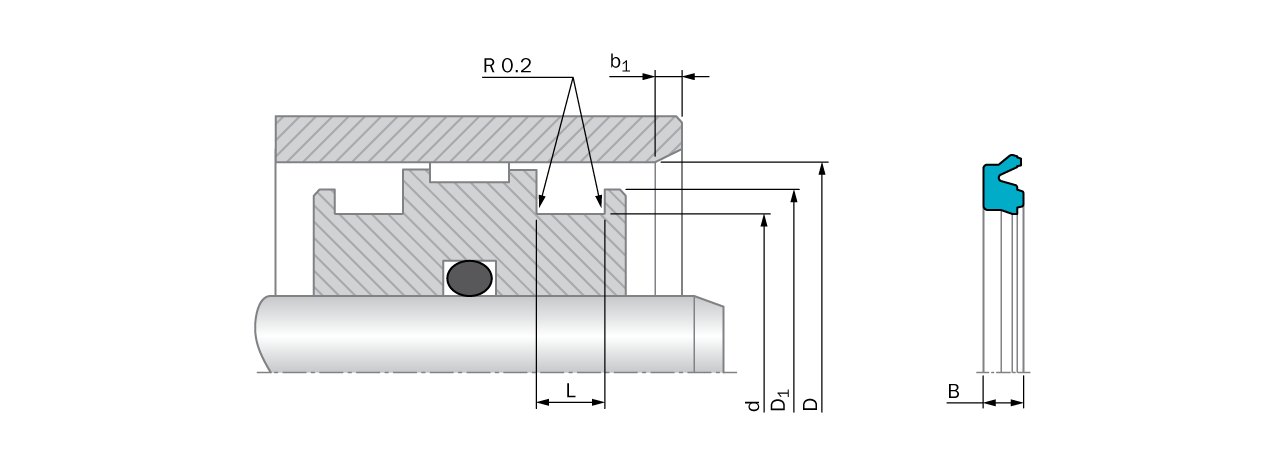

Seal dimensions are in line with cylinder diameters according to ISO 3320. Seal design guaranties high reliability and simple snap assembly. This particular polyurethane offers exceptional wear resistance and extremely high operating performance. Special lip design for pneumatic application to maintain lubrication film and minimize friction. The seal has an optimized, stick-slip reducing design for use in end positioned damped cylinders with exhaust throttles.
Pneumatic -Piston Seal-:
Groove Diameter Outside42 mm
Ring Width0 mm
Ring Diameter Outside0 mm
Ring Diameter Inside0 mm
TSS Article Number (3 to 9)DG00420
Signature StandardAPDG00420EZ30
Type of Article0
Quality (10th Digit)E
Root Groove Inside Diameter34 mm
Root Groove Outside Diameter42 mm
Root Groove Thickness3.5 mm
Article GroupAP
Groove Diameter Inside34 mm
Ring Thickness0 mm
Groove Thickness0 mm
Groove Width3.5 mm
Compound codeZ30
Material Information for the product(s) on this page
Z30
Z30 Engineering Data Sheet_Ed1_rev0Z30 Specification_Ed1_rev0
Material Code Class:
Thermoplastic
Color:
Blue
Hardness unit:
Shore A
Maximum Hardness:
85
Gravity Tolerance:
+/-0.02
Specific Gravity:
1.17
Material Type:
PUR
Minimum Temperature:
-40
Minimum Hardness:
85
Maximum Temperature:
85
Material:
Z30
Hardness Tolerance:
+/- 3
Gravity Unit:
g/cm³
Shore A Hardness:
85+/- 3
