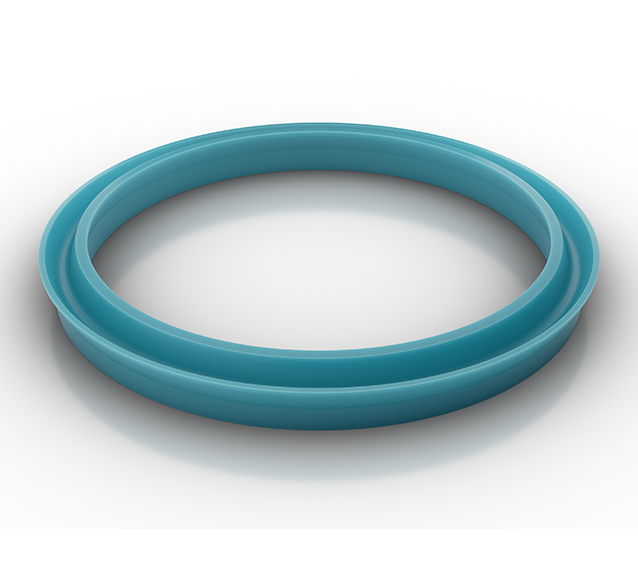

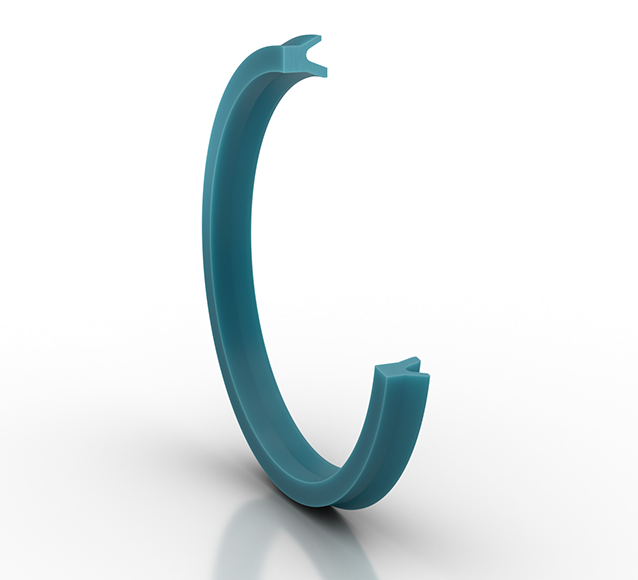

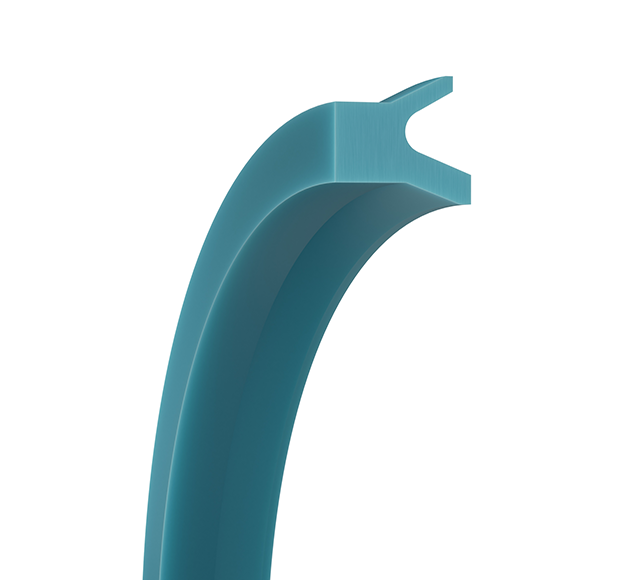

Single acting piston seal with U-shaped cross-section. For double acting pistons, two seals are used ”back to back”. Special lip design for pneumatic application to maintain lubricating film and minimize friction. Suitable for cylinders with pneumatic cushioning.
Pneumatic -Piston Seal-:
Groove Diameter Outside12 mm
TSS Article Number (3 to 9)DE00120
Signature StandardAPDE00120-WU9E1
Type of Article0
Quality (10th Digit)-
Root Groove Inside Diameter7 mm
Root Groove Outside Diameter12 mm
Root Groove Width3 mm
Article GroupAP
Groove Diameter Inside7 mm
Groove Width3 mm
Compound codeWU9E1
Material Information for the product(s) on this page
WU9E1
WU9E1 Engineering Data Sheet_Ed1_rev0
Color:
Grey
Gravity Unit:
g/cm³
Maximum Temperature:
80
Material Code Class:
Thermoplastic
Specific Gravity:
1.14
Hardness Tolerance:
+/- 2
Minimum Temperature:
-40
Gravity Tolerance:
+/-0.02
Maximum Hardness:
91
Material:
WU9E1
Shore A Hardness:
91+/- 2
Hardness unit:
Shore A
Minimum Hardness:
91
Material Type:
PUR
